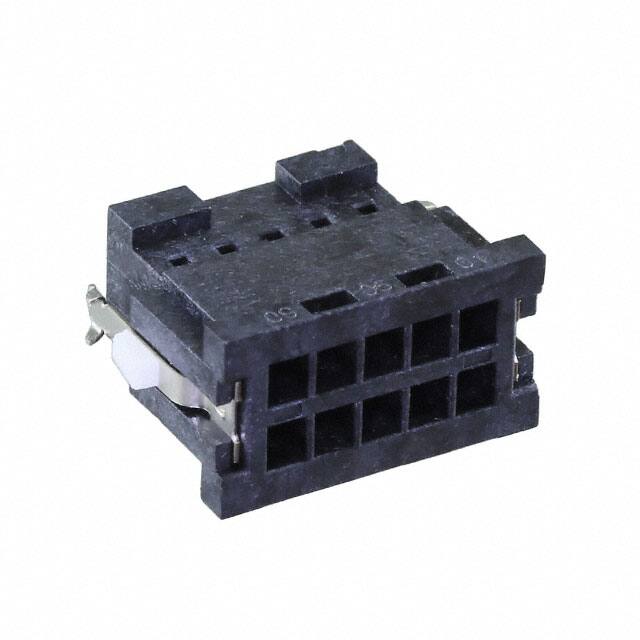

ISD2-05-D-M

Specifications

Pozisyon Sayısı

10

Pitch

0.079 2.00mm

Contact Plating

Silver

Radyasyon Dayanımı

No

Özellikler

Retention Latches

Contact Termination

Crimp

Uzunluk

13.5mm

HTS Kodu

8536.69.40.40

Seri

Tiger Eye™ ISD2

Reference Standard

UL

Termination Type

IDC

Note

Contacts Not Included

Fabrika Tedarik Süresi

3 Weeks

Din Conformance

NO

Contact Design

LOOSE

Connector Type

BOARD CONNECTOR

Additional Feature

LATCHED

Contact Type

Female Socket

Sıra Sayısı

2

Total Number Of Contacts

10

Ambalaj

Tube

Orientation

Straight

Iec Conformance

NO

ECCN Kodu

EAR99

RoHS Durumu

ROHS3 Compliant

Housing Material

Polymer

Filter Feature

NO

Row Spacing

0.079 (2.00mm)

Renk

Black

Option

GENERAL PURPOSE

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Yayın Yılı

2014

Reach Svhc

No SVHC

Nem Hassasiyeti (MSL)

1 (Unlimited)

Wire Gauge Min

24 AWG

Mil Conformance

NO

Parça Durumu

Active

Fastening Type

Latch Lock

Mixed Contacts

NO

Wire Gauge Max

30 AWG
