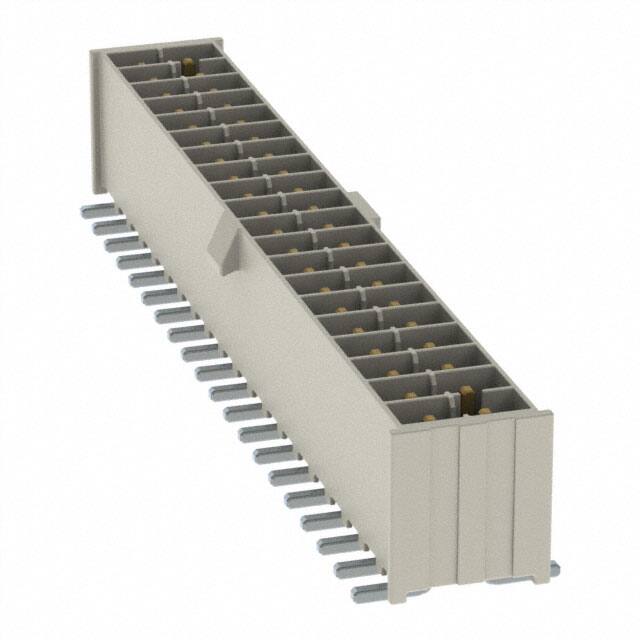

IPL1-120-02-S-D-K

Specifications

RoHS Durumu

ROHS3 Compliant

Yayın Yılı

2013

Pozisyon Sayısı

40

Insulation Materials

Liquid Crystal Polymer (LCP)

Insulation Height

0.320 8.13mm

Depth

9.58mm

Montaj

Surface Mount

Material Flammability Rating

UL94 V-0

Mixed Contacts

NO

Radyasyon Dayanımı

No

Terminal

Solder

Contact Finish Thickness Mating

30.0μin 0.76μm

Çalışma Sıcaklığı

-55°C~125°C

Seri

Mini Mate® IPL1

Nem Hassasiyeti (MSL)

1 (Unlimited)

Iec Conformance

NO

Contact Shape

Square

Empty Shell

NO

Additional Feature

POLARIZED

Din Conformance

NO

Pitch Mating

0.100 2.54mm

Fabrika Tedarik Süresi

3 Weeks

Contact Lengthmating

0.215 5.46mm

Contact Finish Post

Tin

Number Of Ports

1

Housing Material

Polymer

Connector Type

Header

Mil Conformance

NO

Number Of Positions Loaded

All

Row Spacing Mating

0.100 (2.54mm)

Option

GENERAL PURPOSE

Nominal Gerilim

675VAC 954VDC

Total Number Of Contacts

40

Fastening Type

Locking Ramp

Uzunluk

52.32mm

Contact Type

Male Pin

Gender

Male

Contact Materials

Phosphor Bronze

Filter Feature

NO

Style

Board to Cable/Wire
