Volume pricing
- 1+ pcs$4.74
- 10+ pcs$4.47
- 100+ pcs$4.22
- 500+ pcs$3.98
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

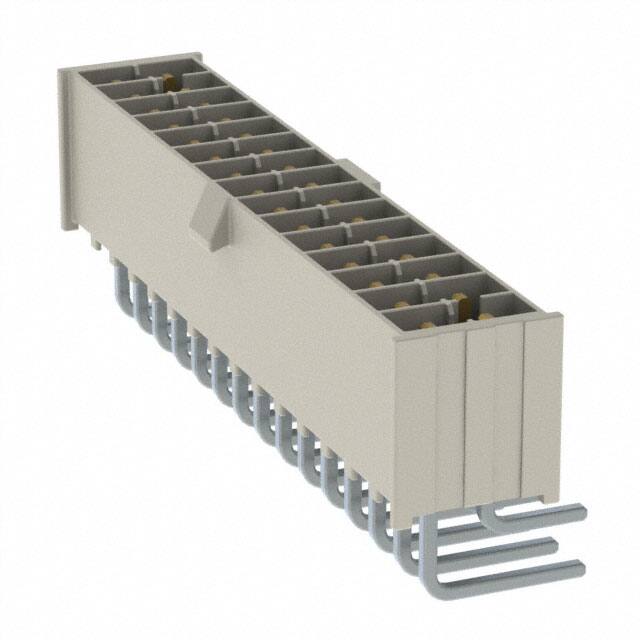

Specifications
- Housing Material
- Polymer
- Connector Type
- Header
- Mil Conformance
- NO
- Reach Svhc
- No SVHC
- Fabrika Tedarik Süresi
- 3 Weeks
- Contact Lengthmating
- 0.215 5.46mm
- Contact Finish Post
- Tin
- Number Of Ports
- 1
- Din Conformance
- NO
- Pitch Mating
- 0.100 2.54mm
- Number Of Conductors
- ONE
- Empty Shell
- NO
- Additional Feature
- POLARIZED, SHROUDED
- Contact Length Post
- 0.085 2.16mm
- Iec Conformance
- NO
- Contact Shape
- Square
- Seri
- Mini Mate® IPL1
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Contact Finish Thickness Mating
- 10.0μin 0.25μm
- Çalışma Sıcaklığı
- -55°C~125°C
- Terminal
- Solder
- Radyasyon Dayanımı
- No
- Montaj
- Through Hole
- ECCN Kodu
- EAR99
- Material Flammability Rating
- UL94 V-0
- Mixed Contacts
- NO
- Depth
- 12.19mm
- Insulation Materials
- Liquid Crystal Polymer (LCP)
- Insulation Height
- 0.290 7.37mm
- Max Voltage Rating Ac
- 675V
- Yayın Yılı
- 2013
- Pozisyon Sayısı
- 30
- RoHS Durumu
- ROHS3 Compliant
- Reference Standard
- UL
- Sıra Sayısı
- 2
- Max Current Rating
- 7.4A
- Ambalaj
- Tube
- Montaj Tipi
- Through Hole, Right Angle
- Parça Durumu
- Active
- Orientation
- Right Angle
