Volume pricing
- 1+ pcs$3.12
- 10+ pcs$2.95
- 100+ pcs$2.78
- 500+ pcs$2.62
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

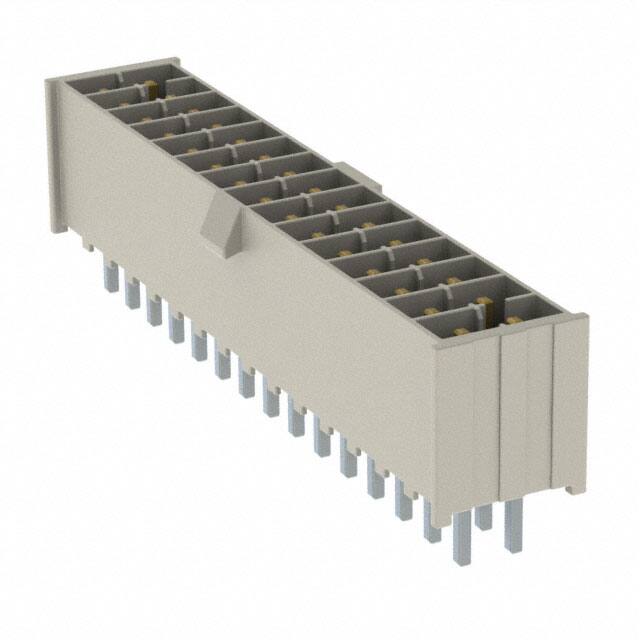

Specifications
- Fastening Type
- Locking Ramp
- Nominal Gerilim
- 675VAC 954VDC
- Option
- GENERAL PURPOSE
- Row Spacing Mating
- 0.100 (2.54mm)
- Number Of Positions Loaded
- All
- Filter Feature
- NO
- Contact Materials
- Phosphor Bronze
- Gender
- Male
- Contact Type
- Male Pin
- Uzunluk
- 39.62mm
- Kurşunsuz Kodu
- yes
- JESD-609 Kodu
- e3
- Insulation Color
- Natural
- Contact Finish Mating
- Gold
- Style
- Board to Cable/Wire
- Sıra Sayısı
- 2
- Montaj Tipi
- Through Hole
- Ambalaj
- Tube
- Max Current Rating
- 7.4A
- Shrouding
- Shrouded - 4 Wall
- Orientation
- Straight
- Parça Durumu
- Active
- Insulation Height
- 0.320 8.13mm
- Insulation Materials
- Liquid Crystal Polymer (LCP)
- Pozisyon Sayısı
- 30
- Yayın Yılı
- 2013
- RoHS Durumu
- ROHS3 Compliant
- Çalışma Sıcaklığı
- -55°C~125°C
- Contact Finish Thickness Mating
- 10.0μin 0.25μm
- Terminal
- Solder
- Radyasyon Dayanımı
- No
- Mixed Contacts
- NO
- Material Flammability Rating
- UL94 V-0
- Montaj
- Through Hole
- Additional Feature
- POLARIZED
- Empty Shell
- NO
- Contact Length Post
- 0.120 3.05mm
- Contact Shape
- Square
- Iec Conformance
- NO
- Seri
- Mini Mate® IPL1
