Volume pricing
- 1+ pcs$2.19
- 10+ pcs$2.06
- 100+ pcs$1.95
- 500+ pcs$1.84
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

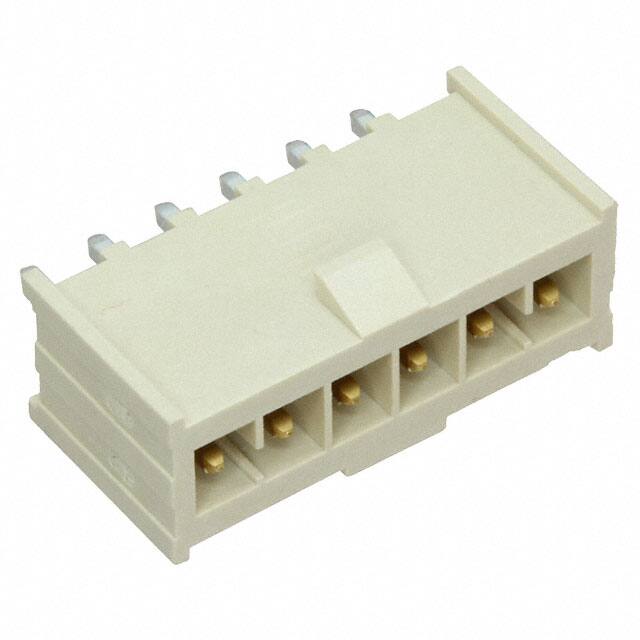

Specifications
- Din Conformance
- NO
- Pitch Mating
- 0.100 2.54mm
- Housing Material
- Polymer
- Connector Type
- Header
- Mil Conformance
- NO
- Fabrika Tedarik Süresi
- 1 Weeks
- Contact Lengthmating
- 0.215 5.46mm
- Contact Finish Post
- Tin
- Iec Conformance
- NO
- Contact Shape
- Square
- Seri
- Mini Mate® IPL1
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Empty Shell
- NO
- Additional Feature
- POLARIZED
- Contact Length Post
- 0.120 3.05mm
- Radyasyon Dayanımı
- No
- ECCN Kodu
- EAR99
- Montaj
- Through Hole
- Material Flammability Rating
- UL94 V-0
- Mixed Contacts
- NO
- Contact Finish Thickness Mating
- 10.0μin 0.25μm
- Çalışma Sıcaklığı
- -55°C~125°C
- Terminal
- Solder
- Max Voltage Rating Ac
- 675V
- Yayın Yılı
- 2016
- Pozisyon Sayısı
- 6
- RoHS Durumu
- ROHS3 Compliant
- Insulation Materials
- Liquid Crystal Polymer (LCP)
- Insulation Height
- 0.320 8.13mm
- Parça Durumu
- Active
- Shrouding
- Shrouded - 4 Wall
- Orientation
- Straight
- Sıra Sayısı
- 1
- Max Current Rating
- 7.4A
- Ambalaj
- Tube
- Montaj Tipi
- Through Hole
- Style
- Board to Cable/Wire
- JESD-609 Kodu
- e3
- Kurşunsuz Kodu
- yes
- Contact Finish Mating
- Gold
