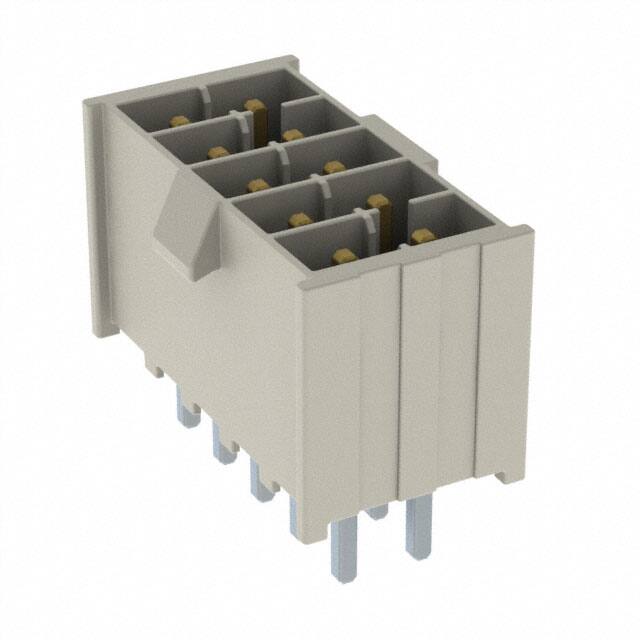

IPL1-105-01-L-D-K

Specifications

Fabrika Tedarik Süresi

3 Weeks

Contact Lengthmating

0.215 5.46mm

Contact Finish Post

Tin

Number Of Ports

1

Housing Material

Polymer

Mil Conformance

NO

Connector Type

Header

Reach Svhc

No SVHC

Din Conformance

NO

Pitch Mating

0.100 2.54mm

Number Of Conductors

ONE

Contact Length Post

0.120 3.05mm

Empty Shell

NO

Additional Feature

POLARIZED

Seri

Mini Mate® IPL1

Nem Hassasiyeti (MSL)

1 (Unlimited)

Iec Conformance

NO

Contact Shape

Square

Terminal

Solder

Contact Finish Thickness Mating

10.0μin 0.25μm

Çalışma Sıcaklığı

-55°C~125°C

ECCN Kodu

EAR99

Montaj

Through Hole

Material Flammability Rating

UL94 V-0

HTS Kodu

8536.69.40.30

Mixed Contacts

NO

Radyasyon Dayanımı

No

Insulation Materials

Liquid Crystal Polymer (LCP)

Insulation Height

0.320 8.13mm

RoHS Durumu

ROHS3 Compliant

Reference Standard

UL

Max Voltage Rating Ac

675V

Yayın Yılı

2013

Pozisyon Sayısı

10

Max Current Rating

7.4A

Ambalaj

Tube

Montaj Tipi

Through Hole

Sıra Sayısı

2

Parça Durumu

Active

Orientation

Straight
