Volume pricing
- 1+ pcs$2.90
- 10+ pcs$2.74
- 100+ pcs$2.58
- 500+ pcs$2.43
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

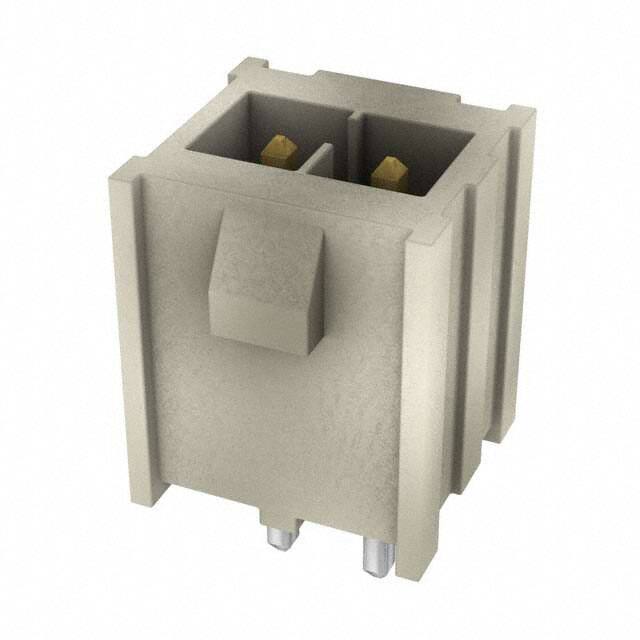

Specifications
- Gender
- Male
- Contact Materials
- Phosphor Bronze
- Uzunluk
- 6.6mm
- Pcb Contact Pattern
- RECTANGULAR
- Contact Type
- Male Pin
- Filter Feature
- NO
- Number Of Positions Loaded
- All
- Nominal Gerilim
- 675VAC 954VDC
- Option
- GENERAL PURPOSE
- Fastening Type
- Locking Ramp
- Parça Durumu
- Active
- Shrouding
- Shrouded - 4 Wall
- Orientation
- Straight
- Sıra Sayısı
- 1
- Max Current Rating
- 7.4A
- Ambalaj
- Tube
- Montaj Tipi
- Through Hole
- Style
- Board to Cable/Wire
- Reliability
- COMMERCIAL
- JESD-609 Kodu
- e3
- Kurşunsuz Kodu
- yes
- Contact Finish Mating
- Gold
- Insulation Color
- Natural
- Radyasyon Dayanımı
- No
- ECCN Kodu
- EAR99
- Montaj
- Through Hole
- HTS Kodu
- 8536.69.40.30
- Material Flammability Rating
- UL94 V-0
- Mixed Contacts
- NO
- Contact Finish Thickness Mating
- 30.0μin 0.76μm
- Çalışma Sıcaklığı
- -55°C~125°C
- Terminal
- Solder
- Max Voltage Rating Ac
- 675V
- Yayın Yılı
- 2009
- Dielectric Withstanding Voltage
- 675VAC V
- Pozisyon Sayısı
- 2
- RoHS Durumu
- ROHS3 Compliant
- Reference Standard
- UL
- Insulation Materials
- Liquid Crystal Polymer (LCP)
- Insulation Height
- 0.320 8.13mm
