Volume pricing
- 1+ pcs$1.53
- 10+ pcs$1.44
- 100+ pcs$1.36
- 500+ pcs$1.28
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

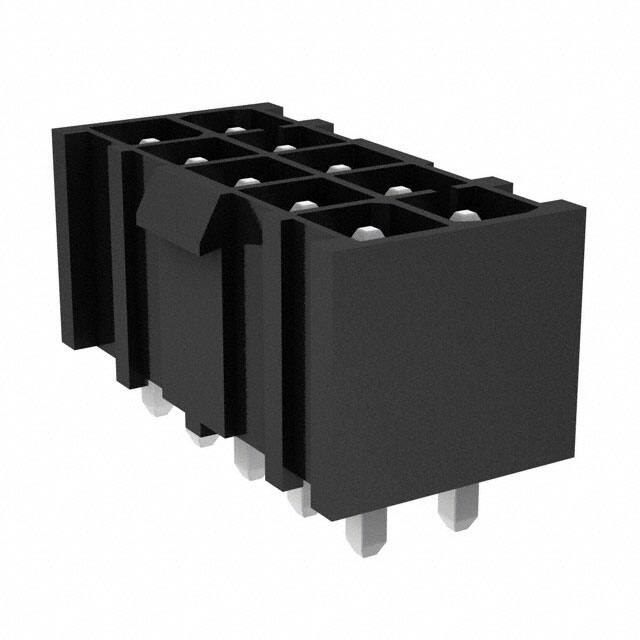

Specifications
- Insulation Materials
- Liquid Crystal Polymer (LCP)
- Connector Type
- Header
- HTS Kodu
- 8536.69.40.30
- Length Termination
- 0.13 inch
- RoHS Durumu
- ROHS3 Compliant
- Contact Finish Mating
- Tin
- Filter Feature
- NO
- Ambalaj
- Tube
- Reference Standard
- UL, CSA
- Option
- GENERAL PURPOSE
- Çalışma Sıcaklığı
- -55°C~105°C
- Contact Shape
- Square
- Pitch Mating
- 0.165 4.20mm
- ECCN Kodu
- EAR99
- JESD-609 Kodu
- e3
- Number Of Positions Loaded
- All
- Insulation Height
- 0.380 9.65mm
- Nominal Gerilim
- 400VAC 565VDC
- Insulation Color
- Black
- Montaj Tipi
- Through Hole
- Contact Length Post
- 0.130 3.30mm
- Empty Shell
- NO
- Din Conformance
- NO
- Kurşunsuz Kodu
- yes
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Reliability
- COMMERCIAL
- Gender
- Male
- Contact Type
- Male Pin
- Pozisyon Sayısı
- 10
- Style
- Board to Board or Cable
- Overall Contact Length
- 0.510 12.95mm
- Fabrika Tedarik Süresi
- 3 Weeks
- Seri
- Power Mate® IPBT
- Contact Materials
- Copper Alloy
- Shrouding
- Shrouded - 4 Wall
- Iec Conformance
- NO
- Mixed Contacts
- NO
- Body Length Or Diameter
- 0.878 inch
- Parça Durumu
- Active
- Material Flammability Rating
- UL94 V-0
