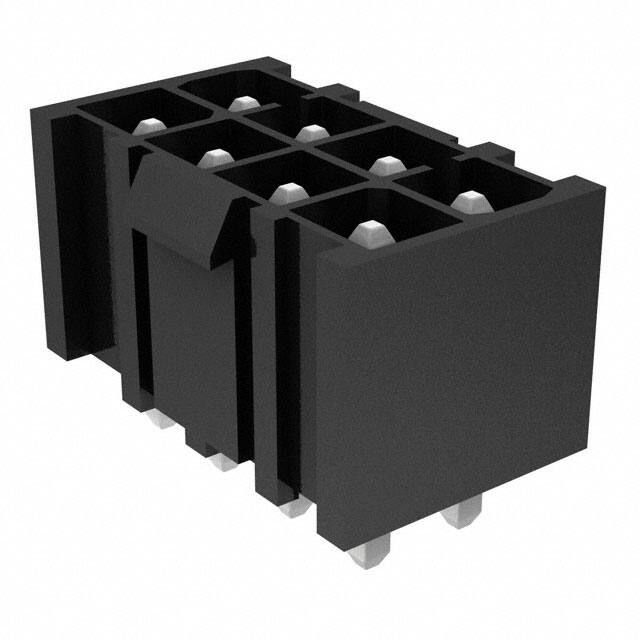

IPBT-104-H1-T-D-K

Specifications

Option

GENERAL PURPOSE

Çalışma Sıcaklığı

-55°C~105°C

Contact Shape

Square

Pitch Mating

0.165 4.20mm

ECCN Kodu

EAR99

JESD-609 Kodu

e3

Number Of Positions Loaded

All

Insulation Height

0.380 9.65mm

Nominal Gerilim

400VAC 565VDC

Insulation Color

Black

Montaj Tipi

Through Hole

Contact Length Post

0.130 3.30mm

Empty Shell

NO

Reliability

COMMERCIAL

Nem Hassasiyeti (MSL)

1 (Unlimited)

Din Conformance

NO

Kurşunsuz Kodu

yes

Insulation Materials

Liquid Crystal Polymer (LCP)

Connector Type

Header

Montaj

Through Hole

Length Termination

0.13 inch

RoHS Durumu

ROHS3 Compliant

Contact Finish Mating

Tin

Filter Feature

NO

Ambalaj

Tube

Reference Standard

UL, CSA

Iec Conformance

NO

Mixed Contacts

NO

Body Length Or Diameter

0.713 inch

Parça Durumu

Active

Material Flammability Rating

UL94 V-0

Orientation

Straight

Mil Conformance

NO

Yayın Yılı

2016

Terminal

Solder

Contact Lengthmating

0.260 6.60mm

Fastening Type

Locking Ramp

Row Spacing Mating

0.165 (4.20mm)

Sıra Sayısı

2

Number Of Conductors

ONE
