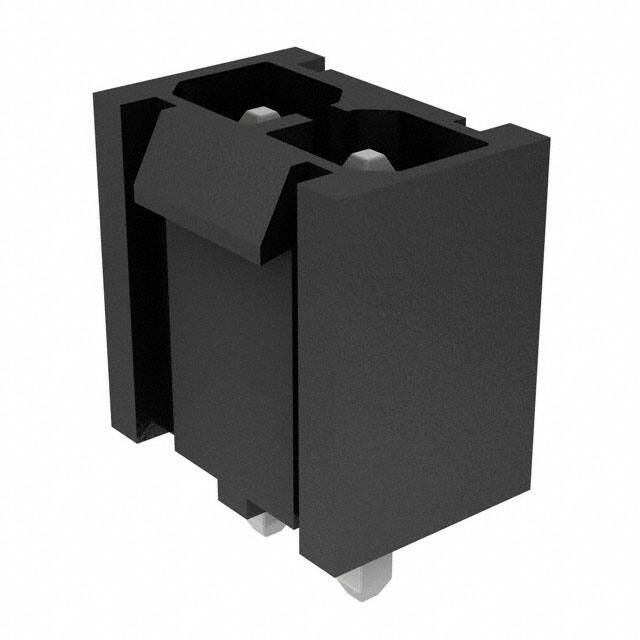

IPBT-102-H1-T-S-K

Specifications

Seri

Power Mate® IPBT

Contact Materials

Copper Alloy

Shrouding

Shrouded - 4 Wall

Ambalaj

Tube

Reach Svhc

No SVHC

Overall Contact Length

0.510 12.95mm

Filter Feature

NO

Fabrika Tedarik Süresi

3 Weeks

Contact Finish Mating

Tin

RoHS Durumu

ROHS3 Compliant

Style

Board to Board or Cable

Montaj

Through Hole

HTS Kodu

8536.69.40.30

Connector Type

Header

Radyasyon Dayanımı

No

Contact Type

Male Pin

Pozisyon Sayısı

2

Insulation Materials

Liquid Crystal Polymer (LCP)

Gender

Male

Additional Feature

POLARIZED, SHROUDED

Empty Shell

NO

Sıra Sayısı

1

Kurşunsuz Kodu

yes

Din Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Lengthmating

0.260 6.60mm

Contact Length Post

0.130 3.30mm

Terminal

Solder

Fastening Type

Locking Ramp

Mil Conformance

NO

Montaj Tipi

Through Hole

Yayın Yılı

2014

Insulation Color

Black

Insulation Height

0.380 9.65mm

Orientation

Straight

Nominal Gerilim

400VAC 565VDC

Material Flammability Rating

UL94 V-0

JESD-609 Kodu

e3

Parça Durumu

Active

Number Of Positions Loaded

All
