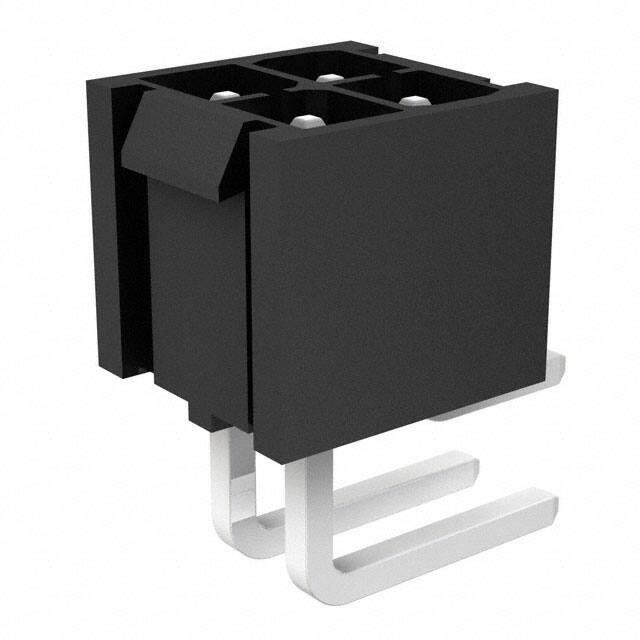

IPBT-102-H1-T-D-RA-K

Specifications

Pozisyon Sayısı

4

Contact Type

Male Pin

Radyasyon Dayanımı

No

Connector Type

Header

Gender

Male

Insulation Materials

Liquid Crystal Polymer (LCP)

Style

Board to Board or Cable

RoHS Durumu

ROHS3 Compliant

Montaj

Through Hole

Filter Feature

NO

Fabrika Tedarik Süresi

3 Weeks

Contact Finish Mating

Tin

Shrouding

Shrouded - 4 Wall

Contact Materials

Copper Alloy

Seri

Power Mate® IPBT

Ambalaj

Bulk

ECCN Kodu

EAR99

Pitch Mating

0.165 4.20mm

Mixed Contacts

NO

Çalışma Sıcaklığı

-55°C~105°C

Contact Shape

Square

Iec Conformance

NO

Option

GENERAL PURPOSE

Nominal Gerilim

400VAC 565VDC

Material Flammability Rating

UL94 V-0

Orientation

Right Angle

Insulation Height

0.424 10.77mm

Parça Durumu

Active

Number Of Positions Loaded

All

JESD-609 Kodu

e3

Montaj Tipi

Through Hole, Right Angle

Yayın Yılı

2014

Mil Conformance

NO

Insulation Color

Black

Nem Hassasiyeti (MSL)

Not Applicable

Kurşunsuz Kodu

yes

Din Conformance

NO

Sıra Sayısı

2

Empty Shell

NO

Additional Feature

POLARIZED, SHROUDED
