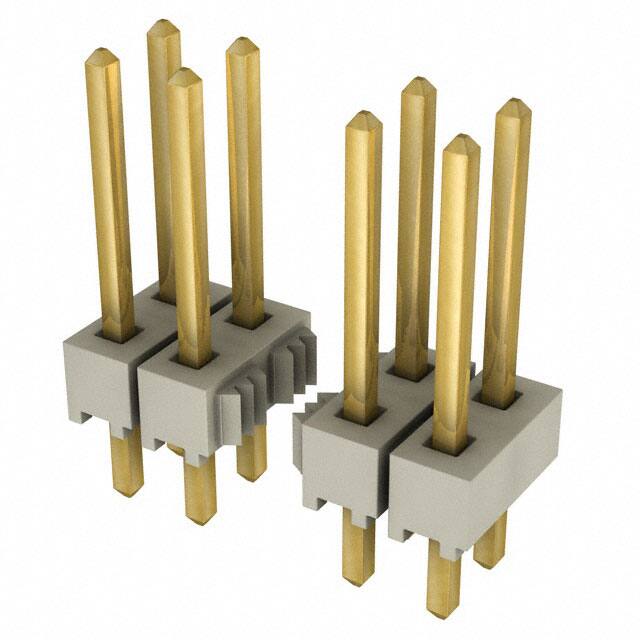

HTSW-110-14-G-D

Specifications

Contact Finish Mating

Gold

Row Spacing Mating

0.100 (2.54mm)

Connector Type

Header

Din Conformance

NO

Pcb Contact Pattern

RECTANGULAR

Insulation Color

Natural

Pozisyon Sayısı

20

Fabrika Tedarik Süresi

6 Weeks

Material Flammability Rating

UL94 V-0

Parça Durumu

Active

Çalışma Sıcaklığı

-55°C~125°C

Lead Pitch

2.54mm

Ambalaj

Bulk

Terminal

Solder

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Finish Thickness Mating

10.0μin 0.25μm

Insulation Materials

Liquid Crystal Polymer (LCP)

Option

GENERAL PURPOSE

Shrouding

Unshrouded

Body Breadth

0.198 inch

Number Of Conductors

ONE

Contact Lengthmating

0.320 8.13mm

Overall Contact Length

0.530 13.46mm

Sıra Sayısı

2

Mixed Contacts

NO

Montaj Tipi

Through Hole

Reach Svhc

No SVHC

Contact Length Post

0.110 2.79mm

Body Length Or Diameter

1 inch

Contact Type

Male Pin

RoHS Durumu

ROHS3 Compliant

Gender

Male

Insulation Height

0.100 2.54mm

Contact Materials

Phosphor Bronze

Additional Feature

E.L.P.

Style

Board to Board or Cable

Filter Feature

NO

Current Rating Amps

Varies by WireGAuge

Mating Contact Pitch

0.1 inch

Montaj

Through Hole
