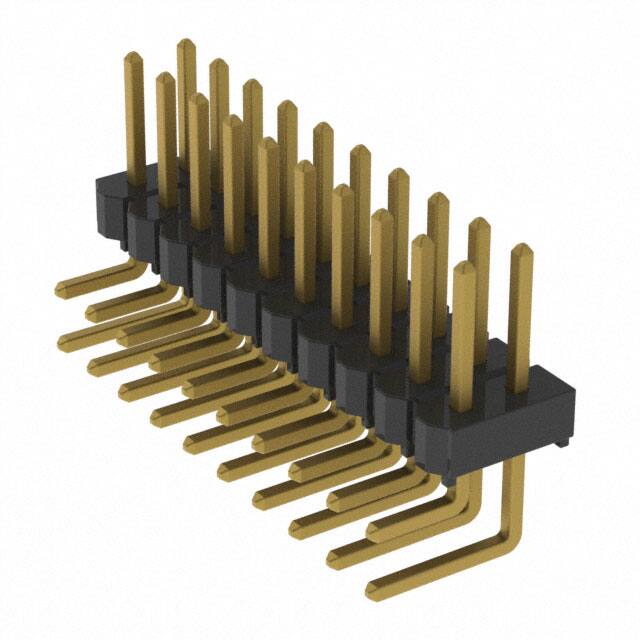

HTSW-110-08-G-D-RA

Specifications

Kurşunsuz

Lead Free

Material Flammability Rating

UL94 V-0

Parça Durumu

Active

Çalışma Sıcaklığı

-55°C~125°C

Pozisyon Sayısı

20

Fabrika Tedarik Süresi

3 Weeks

Housing Material

Polymer

Max Voltage Rating Ac

450V

Connector Type

Header

Row Spacing Mating

0.100 (2.54mm)

Contact Finish Mating

Gold

Pcb Contact Pattern

RECTANGULAR

Din Conformance

NO

Contact Finish Thickness Mating

10.0μin 0.25μm

Option

GENERAL PURPOSE

Insulation Materials

Liquid Crystal Polymer (LCP)

Lead Pitch

2.54mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal

Solder

Housing Color

Natural

Ambalaj

Bulk

Montaj Tipi

Through Hole, Right Angle

Mixed Contacts

NO

Sıra Sayısı

2

Reach Svhc

No SVHC

Uzunluk

25.4mm

Number Of Conductors

ONE

Shrouding

Unshrouded

Body Breadth

0.198 inch

Depth

12.44mm

Contact Lengthmating

0.230 5.84mm

RoHS Durumu

ROHS3 Compliant

Gender

Male

Contact Length Post

0.090 2.29mm

Orientation

Right Angle

Contact Type

Male Pin

Filter Feature

NO

Current Rating Amps

Varies by WireGAuge

Mating Contact Pitch

0.1 inch

Plating Thickness

10μin
