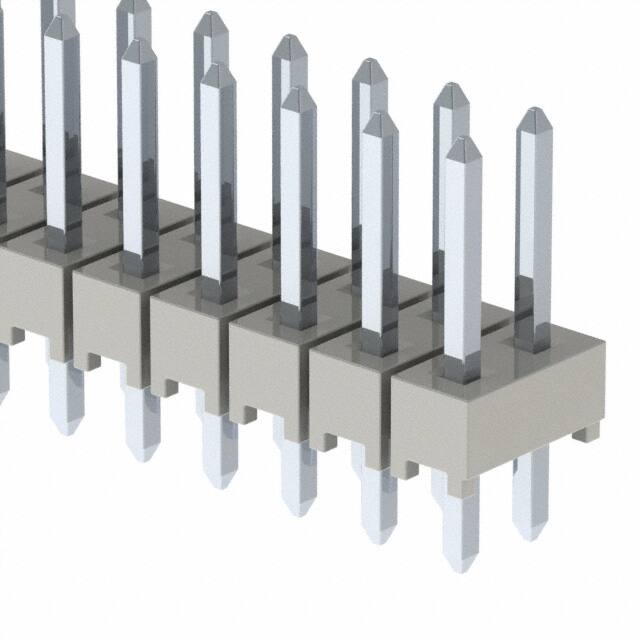

HTSW-110-07-T-D

Specifications

Number Of Positions Loaded

All

Style

Board to Board or Cable

Filter Feature

NO

Current Rating Amps

Varies by WireGAuge

Mating Contact Pitch

0.1 inch

Contact Materials

Phosphor Bronze

Additional Feature

E.L.P.

Insulation Height

0.100 2.54mm

Number Of Pcb Rows

2

Reliability

COMMERCIAL

Mil Conformance

NO

Max Current Rating

7.6A

JESD-609 Kodu

e3

Iec Conformance

NO

Contact Shape

Square

Fastening Type

Push-Pull

Pitch Mating

0.100 2.54mm

Yayın Yılı

2005

Kurşunsuz Kodu

yes

Seri

HTSW

Pozisyon Sayısı

20

Fabrika Tedarik Süresi

3 Weeks

Housing Material

Polymer

Material Flammability Rating

UL94 V-0

Parça Durumu

Active

Çalışma Sıcaklığı

-55°C~105°C

Insulation Color

Natural

Din Conformance

NO

Pcb Contact Pattern

RECTANGULAR

Contact Finish Mating

Tin

Row Spacing Mating

0.100 (2.54mm)

Connector Type

Header

Max Voltage Rating Ac

550V

Insulation Materials

Liquid Crystal Polymer (LCP)

Option

GENERAL PURPOSE

Ambalaj

Bulk

Terminal

Solder

Nem Hassasiyeti (MSL)

1 (Unlimited)

Lead Pitch

2.54mm

Uzunluk

25.4mm
