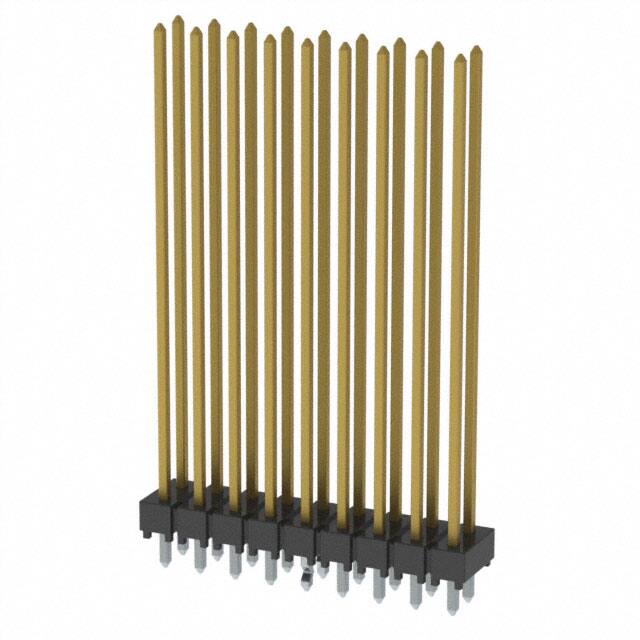

HTSW-109-21-F-D-LL

Specifications

Fastening Type

Push-Pull

Contact Shape

Square

JESD-609 Kodu

e3

Iec Conformance

NO

Kurşunsuz Kodu

yes

Yayın Yılı

2005

Seri

HTSW

Pitch Mating

0.100 2.54mm

Insulation Height

0.100 2.54mm

Contact Materials

Phosphor Bronze

Additional Feature

E.L.P.

Style

Board to Board or Cable

Ul Flammability Code

94V-0

Mating Contact Pitch

0.1 inch

Filter Feature

NO

Current Rating Amps

Varies by WireGAuge

Montaj

Through Hole

Number Of Positions Loaded

All

Mil Conformance

NO

Body Depth

0.1 inch

Number Of Pcb Rows

2

Reliability

COMMERCIAL

Body Breadth

0.198 inch

Shrouding

Unshrouded

Number Of Conductors

ONE

Contact Lengthmating

1.220 30.99mm

Overall Contact Length

1.430 36.32mm

Sıra Sayısı

2

Mixed Contacts

NO

Montaj Tipi

Through Hole

Reach Svhc

No SVHC

Contact Length Post

0.110 2.79mm

Radyasyon Dayanımı

No

Contact Type

Male Pin

Body Length Or Diameter

0.9 inch

Gender

Male

RoHS Durumu

ROHS3 Compliant

Contact Finish Post

Tin

Contact Finish Mating

Gold

Connector Type

Header
