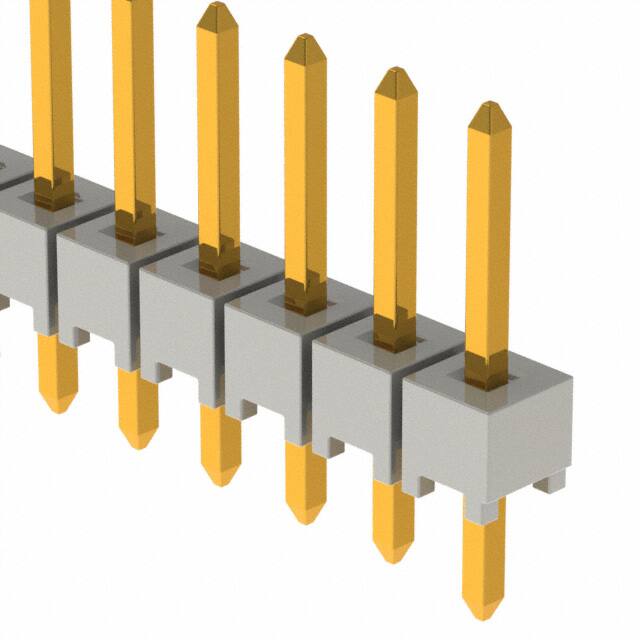

HTSW-106-07-G-S

Specifications

Lead Pitch

2.54mm

Ambalaj

Tube

Housing Color

Natural

Terminal

Solder

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Finish Thickness Mating

10.0μin 0.25μm

Insulation Materials

Liquid Crystal Polymer (LCP)

Option

GENERAL PURPOSE

Connector Type

Header

Contact Finish Mating

Gold

Max Voltage Rating Ac

550V

Din Conformance

NO

Pcb Contact Pattern

RECTANGULAR

Kurşunsuz

Lead Free

Fabrika Tedarik Süresi

3 Weeks

Housing Material

Polymer

Pozisyon Sayısı

6

Çalışma Sıcaklığı

-55°C~125°C

Parça Durumu

Active

Material Flammability Rating

UL94 V-0

Orientation

Straight

Contact Length Post

0.100 2.54mm

Radyasyon Dayanımı

No

Contact Type

Male Pin

Gender

Male

RoHS Durumu

ROHS3 Compliant

Depth

2.48mm

Shrouding

Unshrouded

Number Of Conductors

ONE

Contact Lengthmating

0.230 5.84mm

Overall Contact Length

0.430 10.92mm

Sıra Sayısı

1

Montaj Tipi

Through Hole

Mixed Contacts

NO

Uzunluk

15.24mm

Reach Svhc

No SVHC

Mil Conformance

NO

Contact Finish Thickness Post

3.00μin 0.076μm

Number Of Pcb Rows

1

Mating Information

MULTIPLE MATING PARTS AVAILABLE
