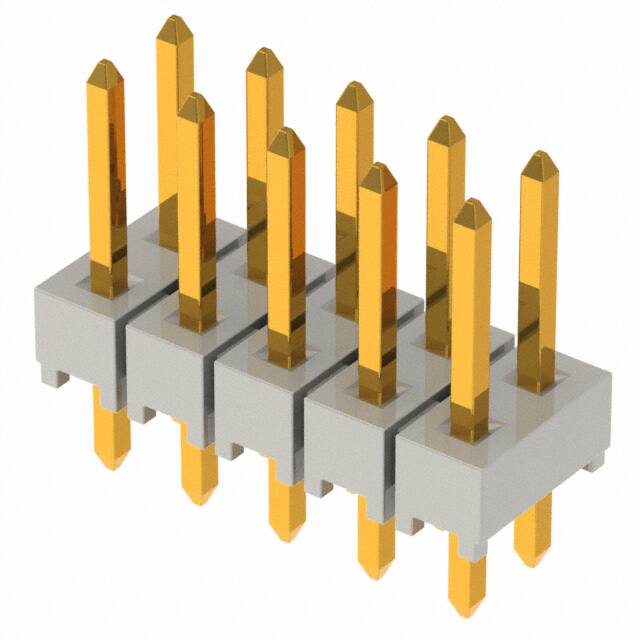

HTSW-105-07-G-D

Specifications

Contact Type

Male Pin

Radyasyon Dayanımı

No

Contact Length Post

0.100 2.54mm

Orientation

Straight

RoHS Durumu

ROHS3 Compliant

Gender

Male

Overall Contact Length

0.430 10.92mm

Contact Lengthmating

0.230 5.84mm

Number Of Conductors

ONE

Shrouding

Unshrouded

Body Breadth

0.198 inch

Depth

5.02mm

Reach Svhc

No SVHC

Uzunluk

12.7mm

Mixed Contacts

NO

Montaj Tipi

Through Hole

Sıra Sayısı

2

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal

Solder

Housing Color

Natural

Ambalaj

Bulk

Lead Pitch

2.54mm

Option

GENERAL PURPOSE

Insulation Materials

Liquid Crystal Polymer (LCP)

Contact Finish Thickness Mating

10.0μin 0.25μm

Pcb Contact Pattern

RECTANGULAR

Din Conformance

NO

Max Voltage Rating Ac

550V

Contact Finish Mating

Gold

Row Spacing Mating

0.100 (2.54mm)

Connector Type

Header

Material Flammability Rating

UL94 V-0

Parça Durumu

Active

Çalışma Sıcaklığı

-55°C~125°C

Pozisyon Sayısı

10

Fabrika Tedarik Süresi

6 Weeks

Housing Material

Polymer

Seri

HTSW

Yayın Yılı

2005

Kurşunsuz Kodu

yes
