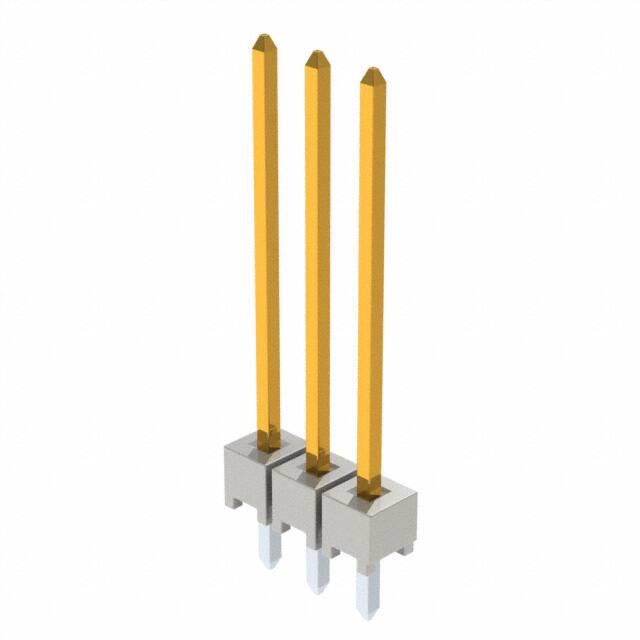

HTSW-103-20-F-S

Specifications

Contact Finish Thickness Mating

3.00μin 0.076μm

Option

GENERAL PURPOSE

Insulation Materials

Liquid Crystal Polymer (LCP)

Lead Pitch

2.54mm

Nem Hassasiyeti (MSL)

Not Applicable

Terminal

Solder

Ambalaj

Bulk

Insulation Color

Natural

Çalışma Sıcaklığı

-55°C~125°C

Parça Durumu

Active

Material Flammability Rating

UL94 V-0

Fabrika Tedarik Süresi

3 Weeks

Pozisyon Sayısı

3

Connector Type

Header

Contact Finish Mating

Gold

Pcb Contact Pattern

RECTANGULAR

Din Conformance

NO

Contact Finish Post

Tin

Gender

Male

RoHS Durumu

ROHS3 Compliant

Radyasyon Dayanımı

No

Contact Length Post

0.110 2.79mm

Contact Type

Male Pin

Mixed Contacts

NO

Montaj Tipi

Through Hole

Sıra Sayısı

1

Reach Svhc

No SVHC

Number Of Conductors

ONE

Body Breadth

0.098 inch

Shrouding

Unshrouded

Overall Contact Length

1.230 31.24mm

Contact Lengthmating

1.020 25.91mm

Reliability

COMMERCIAL

Number Of Pcb Rows

1

Mil Conformance

NO

Filter Feature

NO

Current Rating Amps

Varies by WireGAuge

Style

Board to Board or Cable

Number Of Positions Loaded

All

Montaj

Through Hole
