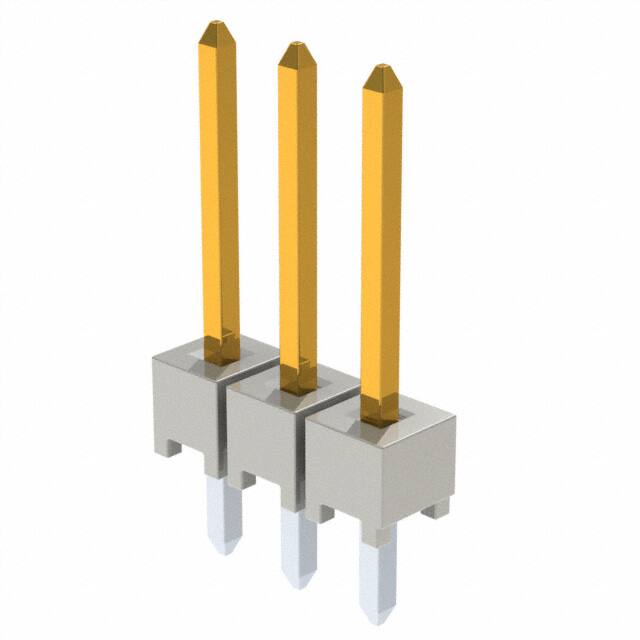

HTSW-103-14-F-S

Specifications

Current Rating Amps

Varies by WireGAuge

Filter Feature

NO

Style

Board to Board or Cable

Number Of Positions Loaded

All

Montaj

Through Hole

Insulation Height

0.100 2.54mm

Additional Feature

E.L.P.

Contact Materials

Phosphor Bronze

Reliability

COMMERCIAL

Number Of Pcb Rows

1

Mil Conformance

NO

JESD-609 Kodu

e3

Iec Conformance

NO

Fastening Type

Push-Pull

Contact Shape

Square

Pitch Mating

0.100 2.54mm

Seri

HTSW

Yayın Yılı

2005

Kurşunsuz Kodu

yes

Insulation Color

Natural

Material Flammability Rating

UL94 V-0

Parça Durumu

Active

Çalışma Sıcaklığı

-55°C~125°C

Pozisyon Sayısı

3

Fabrika Tedarik Süresi

3 Weeks

Contact Finish Mating

Gold

Connector Type

Header

Pcb Contact Pattern

RECTANGULAR

Din Conformance

NO

Contact Finish Thickness Mating

3.00μin 0.076μm

Option

GENERAL PURPOSE

Insulation Materials

Liquid Crystal Polymer (LCP)

Lead Pitch

2.54mm

Nem Hassasiyeti (MSL)

Not Applicable

Terminal

Solder

Ambalaj

Bulk

Mixed Contacts

NO

Montaj Tipi

Through Hole

Sıra Sayısı

1

Reach Svhc

No SVHC
