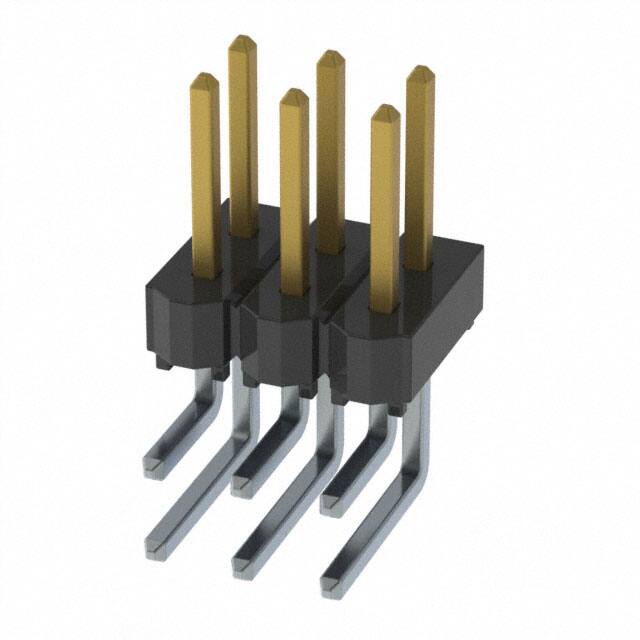

HTSW-103-08-F-D-RA

Specifications

Fastening Type

Push-Pull

Contact Shape

Square

JESD-609 Kodu

e3

Iec Conformance

NO

Max Current Rating

7.6A

Seri

HTSW

Kurşunsuz Kodu

yes

Yayın Yılı

2005

Pitch Mating

0.100 2.54mm

Insulation Height

0.240 6.10mm

Contact Materials

Phosphor Bronze

Mating Contact Pitch

0.1 inch

Filter Feature

NO

Current Rating Amps

Varies by WireGAuge

Style

Board to Board or Cable

Number Of Positions Loaded

All

Montaj

Through Hole

Mil Conformance

NO

Reliability

COMMERCIAL

Renk

Black

Number Of Pcb Rows

2

Number Of Conductors

ONE

Depth

12.44mm

Shrouding

Unshrouded

Contact Lengthmating

0.230 5.84mm

Mixed Contacts

NO

Montaj Tipi

Through Hole, Right Angle

Sıra Sayısı

2

Reach Svhc

No SVHC

Uzunluk

7.62mm

Contact Length Post

0.090 2.29mm

Radyasyon Dayanımı

No

Orientation

Right Angle

Contact Type

Male Pin

Contact Finish Post

Tin

Gender

Male

RoHS Durumu

ROHS3 Compliant

Max Voltage Rating Ac

450V

Contact Finish Mating

Gold

Row Spacing Mating

0.100 (2.54mm)
