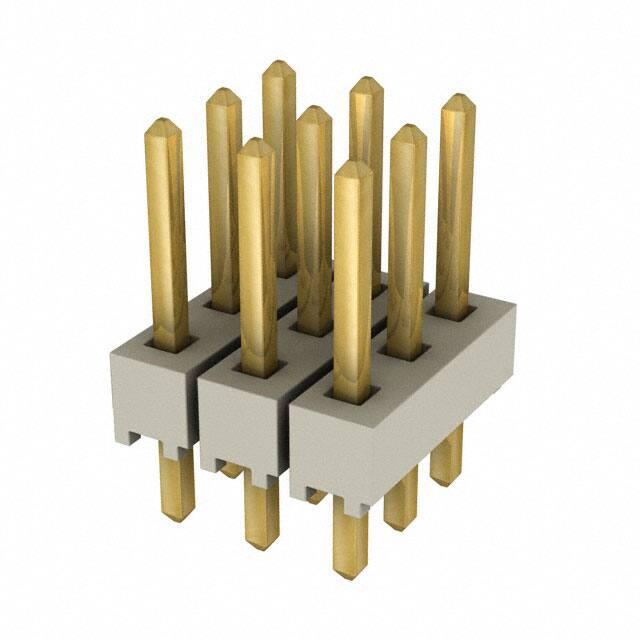

HTSW-103-07-G-T

Specifications

Insulation Height

0.100 2.54mm

Contact Materials

Phosphor Bronze

Style

Board to Board or Cable

Mating Contact Pitch

0.1 inch

Current Rating Amps

Varies by WireGAuge

Filter Feature

NO

Montaj

Through Hole

Number Of Positions Loaded

All

Mil Conformance

NO

Body Depth

0.1 inch

Contact Finish Thickness Post

3.00μin 0.076μm

Number Of Pcb Rows

3

Reliability

COMMERCIAL

Fastening Type

Push-Pull

Contact Shape

Square

JESD-609 Kodu

e4

Iec Conformance

NO

Kurşunsuz Kodu

yes

Yayın Yılı

2005

Seri

HTSW

Pitch Mating

0.100 2.54mm

Connector Type

Header

Row Spacing Mating

0.100 (2.54mm)

Contact Finish Mating

Gold

Din Conformance

NO

Pcb Contact Pattern

RECTANGULAR

Insulation Color

Natural

Fabrika Tedarik Süresi

3 Weeks

Pozisyon Sayısı

9

Parça Durumu

Active

Çalışma Sıcaklığı

-55°C~125°C

Material Flammability Rating

UL94 V-0

Lead Pitch

2.54mm

Ambalaj

Bulk

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal

Solder

Contact Finish Thickness Mating

10.0μin 0.25μm

Insulation Materials

Liquid Crystal Polymer (LCP)

Option

GENERAL PURPOSE

Shrouding

Unshrouded
