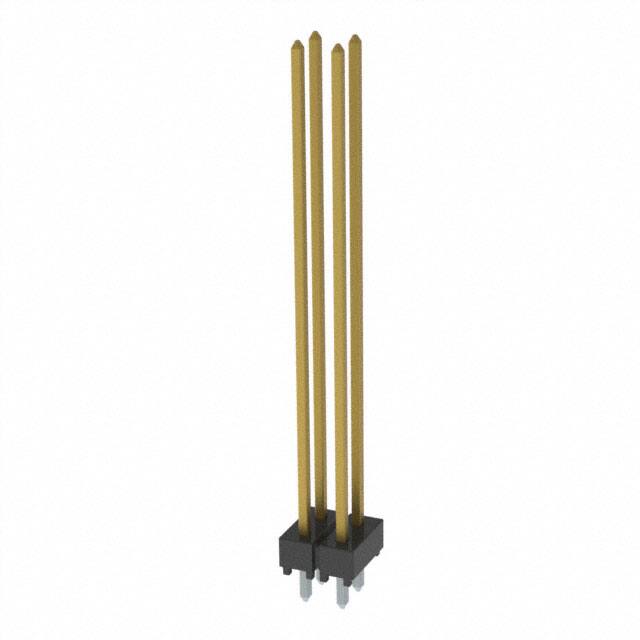

HTSW-102-21-F-D

Specifications

Insulation Color

Natural

Style

Board to Board or Cable

Body Breadth

0.198 inch

Contact Type

Male Pin

Nem Hassasiyeti (MSL)

Not Applicable

Ambalaj

Bulk

Contact Finish Thickness Mating

3.00μin 0.076μm

Contact Materials

Phosphor Bronze

Option

GENERAL PURPOSE

Montaj Tipi

Through Hole

Mixed Contacts

NO

ECCN Kodu

EAR99

Pcb Contact Pattern

RECTANGULAR

Contact Finish Mating

Gold

Reach Svhc

No SVHC

Contact Finish Post

Tin

Overall Contact Length

1.430 36.32mm

Mil Conformance

NO

Row Spacing Mating

0.100 (2.54mm)

Contact Lengthmating

1.220 30.99mm

Insulation Materials

Liquid Crystal Polymer (LCP)

Material Flammability Rating

UL94 V-0

Filter Feature

NO

Pozisyon Sayısı

4

Sıra Sayısı

2

Din Conformance

NO

Number Of Conductors

ONE

Number Of Positions Loaded

All

Terminal

Solder

Çalışma Sıcaklığı

-55°C~125°C

Contact Shape

Square

Connector Type

Header

Montaj

Through Hole

Body Depth

0.1 inch

Radyasyon Dayanımı

No

Lead Pitch

2.54mm

Fastening Type

Push-Pull

Kurşunsuz Kodu

yes

Current Rating Amps

Varies by WireGAuge

Mating Contact Pitch

0.1 inch
