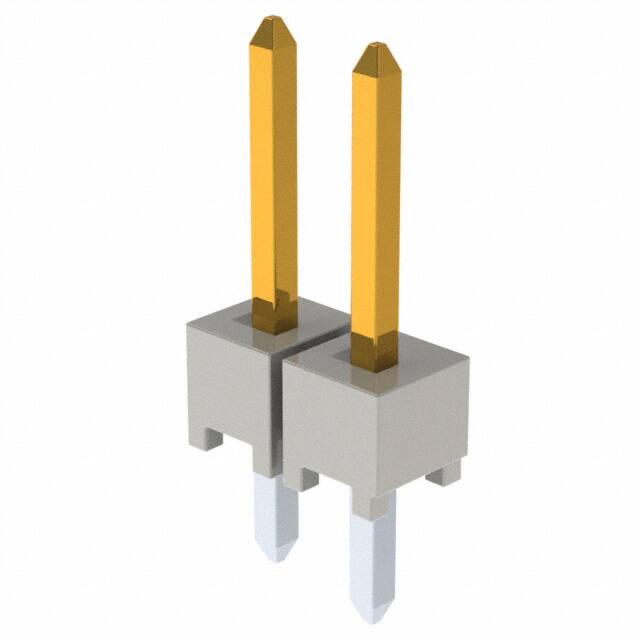

HTSW-102-07-F-S

Specifications

Seri

HTSW

Max Current Rating

7.6A

Reliability

COMMERCIAL

JESD-609 Kodu

e3

Fabrika Tedarik Süresi

3 Weeks

Shrouding

Unshrouded

Housing Material

Polymer

Insulation Height

0.100 2.54mm

Contact Length Post

0.100 2.54mm

Gender

Male

RoHS Durumu

ROHS3 Compliant

Pitch Mating

0.100 2.54mm

Number Of Pcb Rows

1

Parça Durumu

Active

Uzunluk

5.08mm

Iec Conformance

NO

Kurşunsuz Kodu

yes

Orientation

Straight

Fastening Type

Push-Pull

Housing Color

Natural

Additional Feature

E.L.P.

Yayın Yılı

2005

Current Rating Amps

Varies by WireGAuge

Connector Type

Header

Contact Shape

Square

Lead Pitch

2.54mm

Radyasyon Dayanımı

No

Montaj

Through Hole

Filter Feature

NO

Pozisyon Sayısı

2

Material Flammability Rating

UL94 V-0

Insulation Materials

Liquid Crystal Polymer (LCP)

Contact Lengthmating

0.230 5.84mm

Çalışma Sıcaklığı

-55°C~125°C

Number Of Conductors

ONE

Terminal

Solder

Number Of Positions Loaded

All

Sıra Sayısı

1

Din Conformance

NO

Contact Finish Post

Tin
