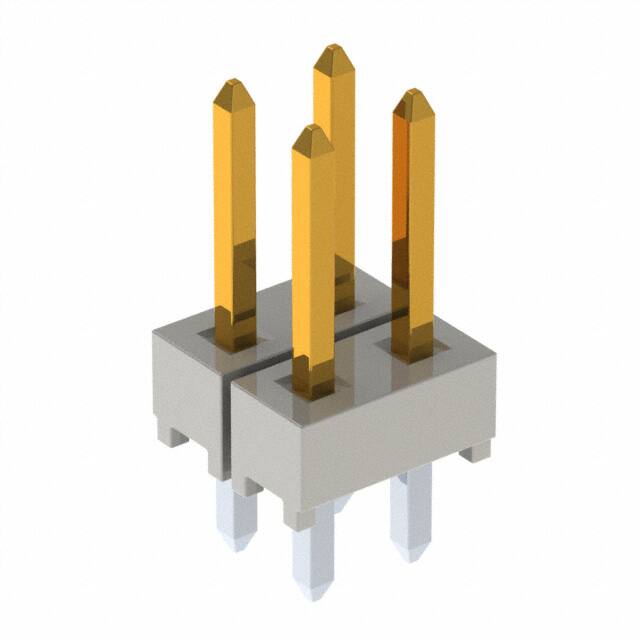

HTSW-102-07-F-D

Specifications

Reach Svhc

No SVHC

Contact Finish Mating

Gold

Pcb Contact Pattern

RECTANGULAR

Mixed Contacts

NO

Montaj Tipi

Through Hole

Option

GENERAL PURPOSE

Contact Finish Thickness Mating

3.00μin 0.076μm

Contact Materials

Phosphor Bronze

Max Voltage Rating Ac

550V

Ambalaj

Bulk

Nem Hassasiyeti (MSL)

1 (Unlimited)

Depth

5.02mm

Body Breadth

0.198 inch

Contact Type

Male Pin

Style

Board to Board or Cable

Insulation Color

Natural

Çalışma Sıcaklığı

-55°C~125°C

Number Of Positions Loaded

All

Terminal

Solder

Number Of Conductors

ONE

Din Conformance

NO

Sıra Sayısı

2

Pozisyon Sayısı

4

Filter Feature

NO

Material Flammability Rating

UL94 V-0

Insulation Materials

Liquid Crystal Polymer (LCP)

Contact Lengthmating

0.230 5.84mm

Row Spacing Mating

0.100 (2.54mm)

Mil Conformance

NO

Overall Contact Length

0.430 10.92mm

Contact Finish Post

Tin

Additional Feature

E.L.P.

Yayın Yılı

2005

Mating Contact Pitch

0.1 inch

Current Rating Amps

Varies by WireGAuge

Kurşunsuz Kodu

yes

Orientation

Straight

Fastening Type

Push-Pull

Lead Pitch

2.54mm

Radyasyon Dayanımı

No
