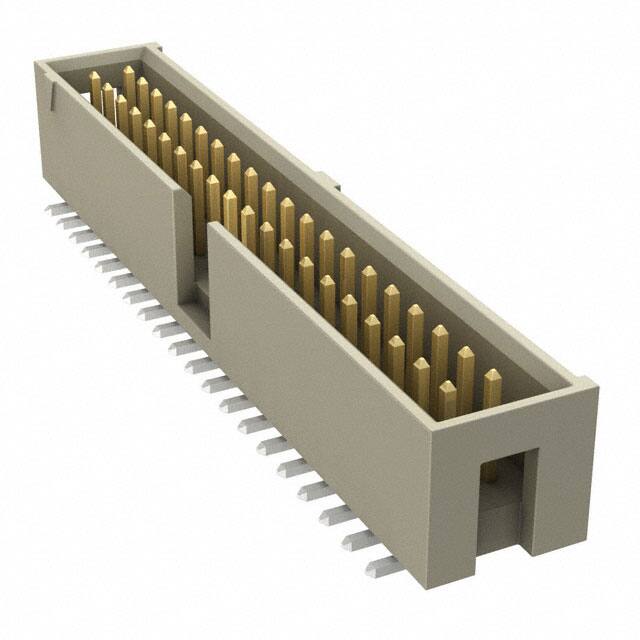

HTST-120-01-S-DV

Specifications

Iec Conformance

NO

Parça Durumu

Active

Number Of Pcb Rows

2

Uzunluk

58.42mm

Pitch Mating

0.100 2.54mm

Gender

Male

RoHS Durumu

ROHS3 Compliant

Mounting Option2

LOCKING

Insulation Height

0.350 8.89mm

Fabrika Tedarik Süresi

6 Weeks

Shrouding

Shrouded - 4 Wall

Housing Material

Polychlorinated

Ul Flammability Code

94V-0

JESD-609 Kodu

e3

Reliability

COMMERCIAL

Max Current Rating

3A

Seri

Flex Stack, HTST

Mounting Option1

GUIDE SLOT

Contact Shape

Square

Connector Type

Header

Current Rating Amps

3.4A per Contact

Mating Contact Pitch

0.1 inch

Pcb Contact Row Spacing

6.858 mm

Yayın Yılı

2012

Insulation Resistance

5000000000Ohm

Fastening Type

Push-Pull

Orientation

Straight

Kurşunsuz Kodu

yes

Mil Conformance

NO

Row Spacing Mating

0.100 (2.54mm)

Reference Standard

UL

Contact Finish Post

Tin

Sıra Sayısı

2

Din Conformance

NO

Number Of Conductors

ONE

Terminal

Solder

Number Of Positions Loaded

All

Çalışma Sıcaklığı

-55°C~125°C

Polarization Key

CTR W/GUIDE SLOTS

Contact Lengthmating

0.250 6.35mm
