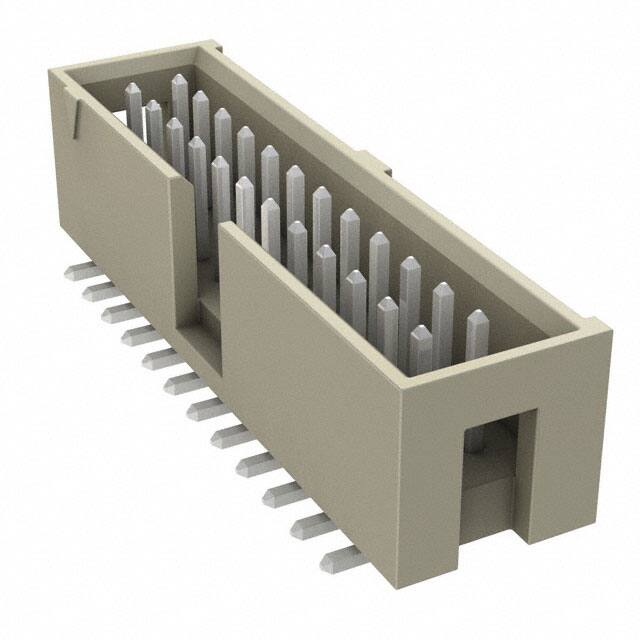

HTST-112-01-T-DV

Specifications

Seri

Flex Stack, HTST

Reliability

COMMERCIAL

JESD-609 Kodu

e3

Ul Flammability Code

94V-0

Shrouding

Shrouded - 4 Wall

Fabrika Tedarik Süresi

4 Weeks

Insulation Height

0.350 8.89mm

RoHS Durumu

ROHS3 Compliant

Gender

Male

Pitch Mating

0.100 2.54mm

Parça Durumu

Active

Number Of Pcb Rows

2

Iec Conformance

NO

Kurşunsuz Kodu

yes

Fastening Type

Push-Pull

Insulation Resistance

5000000000Ohm

Yayın Yılı

2011

Pcb Contact Row Spacing

6.858 mm

Mating Contact Pitch

0.1 inch

Current Rating Amps

3.4A per Contact

Connector Type

Header

Contact Shape

Square

Montaj

Surface Mount

Body Depth

0.4 inch

Pozisyon Sayısı

24

Filter Feature

NO

Total Number Of Contacts

24

Material Flammability Rating

UL94 V-0

Insulation Materials

Liquid Crystal Polymer (LCP)

Contact Lengthmating

0.250 6.35mm

Polarization Key

POLARIZED HOUSING

Çalışma Sıcaklığı

-55°C~105°C

Number Of Positions Loaded

All

Terminal

Solder

Number Of Conductors

ONE

Din Conformance

NO

Sıra Sayısı

2

Reference Standard

UL

Row Spacing Mating

0.100 (2.54mm)

Mil Conformance

NO
