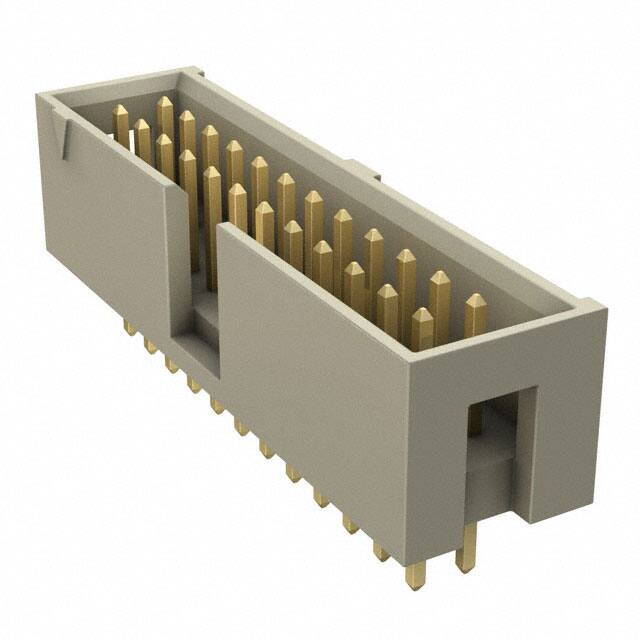

HTST-112-01-G-D

Specifications

Seri

Flex Stack, HTST

JESD-609 Kodu

e4

Ul Flammability Code

94V-0

Insulation Height

0.350 8.89mm

Contact Finish Thickness Post

3.00μin 0.076μm

Shrouding

Shrouded - 4 Wall

Fabrika Tedarik Süresi

3 Weeks

RoHS Durumu

ROHS3 Compliant

Gender

Male

Contact Length Post

0.115 2.92mm

Parça Durumu

Active

Pitch Mating

0.100 2.54mm

Iec Conformance

NO

Kurşunsuz Kodu

yes

Fastening Type

Push-Pull

Current Rating Amps

3.4A per Contact

Yayın Yılı

2014

Contact Shape

Square

Connector Type

Header

Montaj

Through Hole

Pozisyon Sayısı

24

Filter Feature

NO

Contact Lengthmating

0.250 6.35mm

Material Flammability Rating

UL94 V-0

Insulation Materials

Liquid Crystal Polymer (LCP)

Terminal

Solder

Number Of Positions Loaded

All

Number Of Conductors

ONE

Çalışma Sıcaklığı

-55°C~125°C

Din Conformance

NO

Sıra Sayısı

2

Mil Conformance

NO

Overall Contact Length

0.480 12.19mm

Row Spacing Mating

0.100 (2.54mm)

Contact Materials

Phosphor Bronze

Contact Finish Thickness Mating

10.0μin 0.25μm

Montaj Tipi

Through Hole

Option

GENERAL PURPOSE

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Bulk
