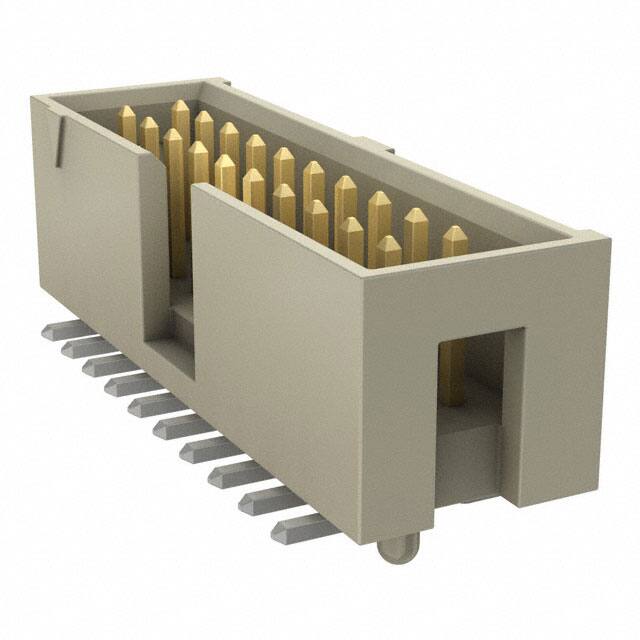

HTST-110-01-S-DV-P-TR

Specifications

Pitch Mating

0.100 2.54mm

Uzunluk

33.02mm

Number Of Pcb Rows

2

Parça Durumu

Active

Iec Conformance

NO

Gender

Male

RoHS Durumu

ROHS3 Compliant

Ul Flammability Code

94V-0

Shrouding

Shrouded - 4 Wall

Housing Material

Polychlorinated

Fabrika Tedarik Süresi

3 Weeks

Insulation Height

0.350 8.89mm

Max Current Rating

3A

Seri

Flex Stack, HTST

JESD-609 Kodu

e3

Reliability

COMMERCIAL

Radyasyon Dayanımı

No

Montaj

Surface Mount

Connector Type

Header

Dielectric Withstanding Voltage

1400VAC V

Contact Shape

Square

Additional Feature

ROHS, T/R PKG, PICK/PLACE PAD

Housing Color

Natural

Yayın Yılı

2007

Pcb Contact Row Spacing

6.858 mm

Mating Contact Pitch

0.1 inch

Current Rating Amps

3.4A per Contact

Kurşunsuz Kodu

yes

Orientation

Straight

Fastening Type

Push-Pull

Insulation Resistance

5000000000Ohm

Row Spacing Mating

0.100 (2.54mm)

Mil Conformance

NO

Contact Finish Post

Tin

Reference Standard

UL

Çalışma Sıcaklığı

-55°C~125°C

Terminal

Solder

Number Of Positions Loaded

All

Number Of Conductors

ONE

Din Conformance

NO
