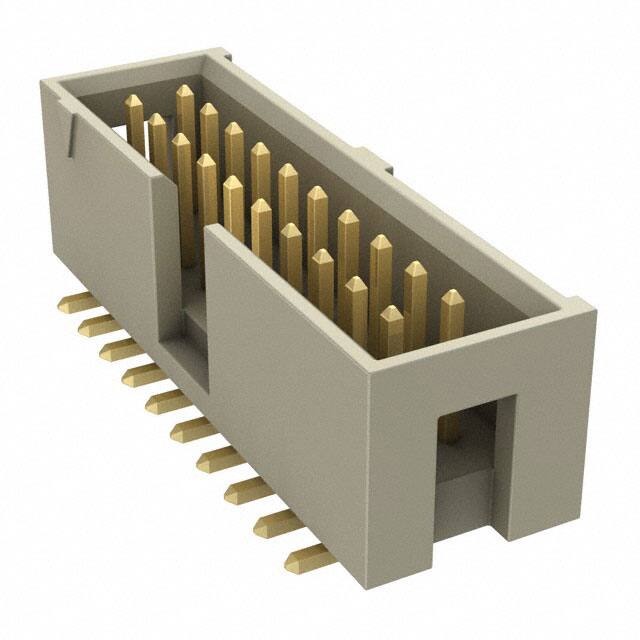

HTST-110-01-G-D

Specifications

Ul Flammability Code

94V-0

Fabrika Tedarik Süresi

3 Weeks

Contact Finish Thickness Post

3.00μin 0.076μm

Housing Material

Polychlorinated

Shrouding

Shrouded - 4 Wall

Insulation Height

0.350 8.89mm

Max Current Rating

3A

Seri

Flex Stack, HTST

JESD-609 Kodu

e4

Pitch Mating

0.100 2.54mm

Parça Durumu

Active

Uzunluk

33.02mm

Iec Conformance

NO

Contact Length Post

0.115 2.92mm

Gender

Male

RoHS Durumu

ROHS3 Compliant

Housing Color

Natural

Yayın Yılı

2014

Current Rating Amps

3.4A per Contact

Kurşunsuz Kodu

yes

Orientation

Straight

Fastening Type

Push-Pull

Kurşunsuz

Lead Free

Montaj

Through Hole

Connector Type

Header

Contact Shape

Square

Çalışma Sıcaklığı

-55°C~125°C

Number Of Conductors

ONE

Number Of Positions Loaded

All

Terminal

Solder

Sıra Sayısı

2

Din Conformance

NO

Filter Feature

NO

Pozisyon Sayısı

20

Insulation Materials

Liquid Crystal Polymer (LCP)

Material Flammability Rating

UL94 V-0

Contact Lengthmating

0.250 6.35mm

Row Spacing Mating

0.100 (2.54mm)

Overall Contact Length

0.480 12.19mm

Mil Conformance

NO
