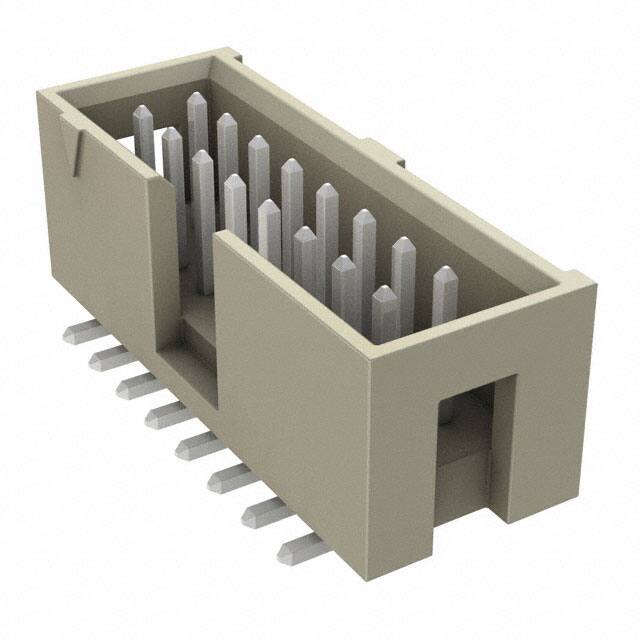

HTST-108-01-T-DV

Specifications

Radyasyon Dayanımı

No

Mounting Option1

LOCKING

Connector Type

Header

Contact Shape

Square

Pcb Contact Row Spacing

6.858 mm

Yayın Yılı

2011

Current Rating Amps

3.4A per Contact

Mating Contact Pitch

0.1 inch

Fastening Type

Push-Pull

Insulation Resistance

5000000000Ohm

Kurşunsuz Kodu

yes

Orientation

Straight

Iec Conformance

NO

Pitch Mating

0.100 2.54mm

Number Of Pcb Rows

2

Parça Durumu

Active

Uzunluk

27.94mm

Gender

Male

RoHS Durumu

ROHS3 Compliant

Fabrika Tedarik Süresi

3 Weeks

Housing Material

Polychlorinated

Shrouding

Shrouded - 4 Wall

Insulation Height

0.350 8.89mm

Ul Flammability Code

94V-0

JESD-609 Kodu

e3

Reliability

COMMERCIAL

Max Current Rating

3A

Seri

Flex Stack, HTST

Style

Board to Cable/Wire

Depth

9.27mm

Body Breadth

0.365 inch

Contact Type

Male Pin

Insulation Color

Natural

Özellikler

Keying Slot

Mixed Contacts

NO

Reach Svhc

No SVHC

Pcb Contact Pattern

RECTANGULAR

Contact Finish Mating

Tin

Ambalaj

Tube

Nem Hassasiyeti (MSL)

1 (Unlimited)
