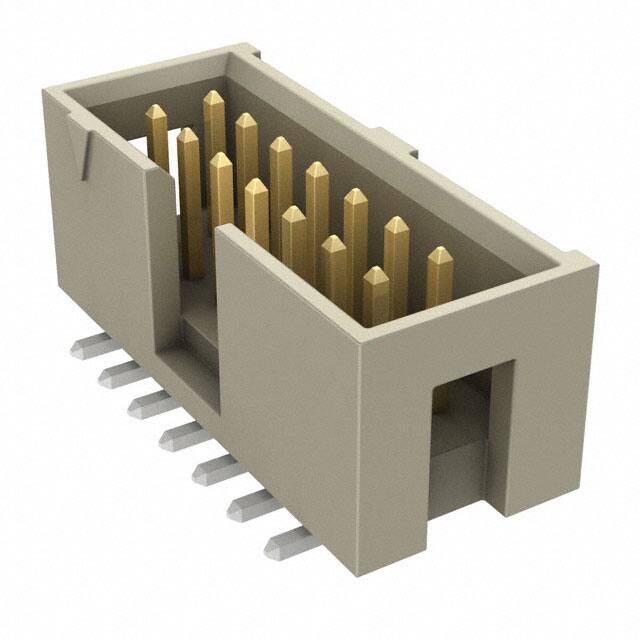

HTST-107-01-L-DV

Specifications

Iec Conformance

NO

Pitch Mating

0.100 2.54mm

Parça Durumu

Active

Number Of Pcb Rows

2

Uzunluk

25.4mm

RoHS Durumu

ROHS3 Compliant

Gender

Male

Fabrika Tedarik Süresi

3 Weeks

Shrouding

Shrouded - 4 Wall

Housing Material

Polychlorinated

Insulation Height

0.350 8.89mm

Ul Flammability Code

94V-0

JESD-609 Kodu

e3

Reliability

COMMERCIAL

Max Current Rating

3A

Seri

Flex Stack, HTST

Montaj

Surface Mount

Kurşunsuz

Lead Free

Radyasyon Dayanımı

No

Connector Type

Header

Contact Shape

Square

Pcb Contact Row Spacing

6.858 mm

Yayın Yılı

2003

Current Rating Amps

3.4A per Contact

Mating Contact Pitch

0.1 inch

Housing Color

Natural

Fastening Type

Push-Pull

Insulation Resistance

5000000000Ohm

Kurşunsuz Kodu

yes

Orientation

Straight

Row Spacing Mating

0.100 (2.54mm)

Mil Conformance

NO

Reference Standard

UL

Contact Finish Post

Tin

Sıra Sayısı

2

Din Conformance

NO

Çalışma Sıcaklığı

-55°C~125°C

Number Of Conductors

ONE

Terminal

Solder

Number Of Positions Loaded

All
