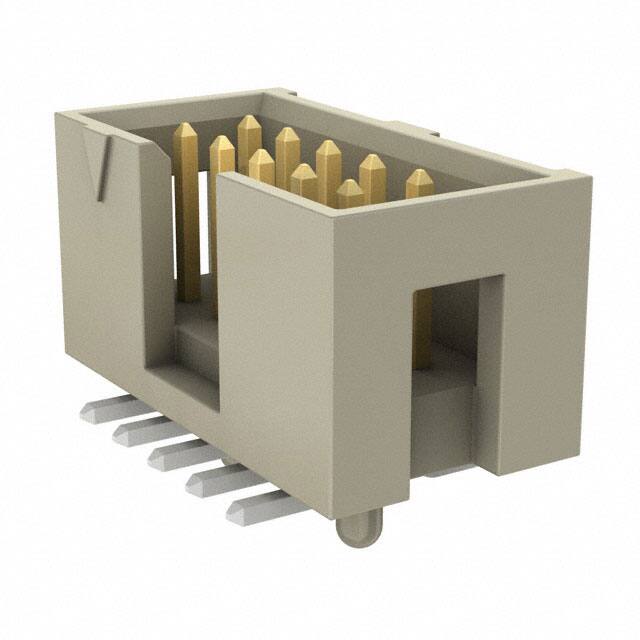

HTST-105-01-L-DV-A

Specifications

Parça Durumu

Active

Uzunluk

20.32mm

Pitch Mating

0.100 2.54mm

Iec Conformance

NO

Gender

Male

RoHS Durumu

ROHS3 Compliant

Ul Flammability Code

94V-0

Insulation Height

0.350 8.89mm

Fabrika Tedarik Süresi

3 Weeks

Shrouding

Shrouded - 4 Wall

Housing Material

Polychlorinated

Max Current Rating

3A

Seri

Flex Stack, HTST

JESD-609 Kodu

e4

Radyasyon Dayanımı

No

Montaj

Surface Mount

Kurşunsuz

Lead Free

Contact Shape

Square

Connector Type

Header

Housing Color

Natural

Current Rating Amps

3.4A per Contact

Yayın Yılı

2007

Orientation

Straight

Kurşunsuz Kodu

yes

Fastening Type

Push-Pull

Mil Conformance

NO

Row Spacing Mating

0.100 (2.54mm)

Contact Finish Post

Tin

Terminal

Solder

Number Of Positions Loaded

All

Çalışma Sıcaklığı

-55°C~125°C

Sıra Sayısı

2

Din Conformance

NO

Filter Feature

NO

Pozisyon Sayısı

10

Contact Lengthmating

0.250 6.35mm

Insulation Materials

Liquid Crystal Polymer (LCP)

Material Flammability Rating

UL94 V-0

Total Number Of Contacts

10

Depth

9.27mm
