Volume pricing
- 1+ pcs$2.75
- 10+ pcs$2.59
- 100+ pcs$2.45
- 500+ pcs$2.31
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

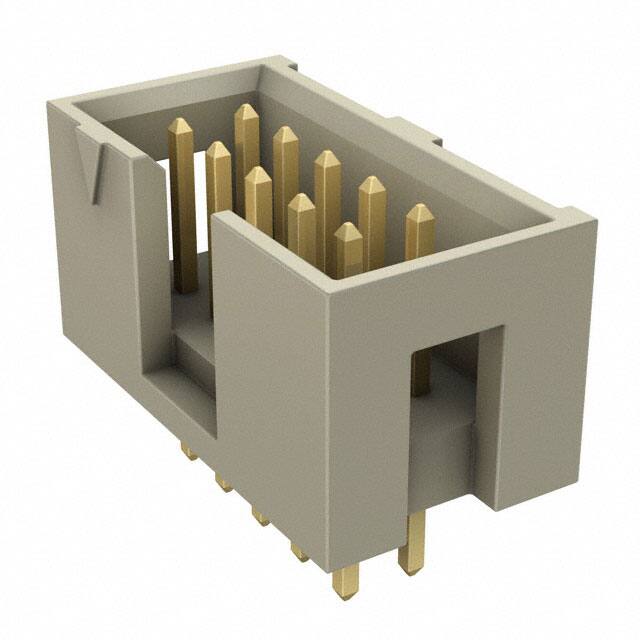

Specifications
- Parça Durumu
- Active
- Uzunluk
- 20.32mm
- Pitch Mating
- 0.100 2.54mm
- Iec Conformance
- NO
- RoHS Durumu
- ROHS3 Compliant
- Gender
- Male
- Contact Length Post
- 0.115 2.92mm
- Ul Flammability Code
- 94V-0
- Insulation Height
- 0.350 8.89mm
- Fabrika Tedarik Süresi
- 3 Weeks
- Contact Finish Thickness Post
- 3.00μin 0.076μm
- Housing Material
- Polychlorinated
- Shrouding
- Shrouded - 4 Wall
- Contact Plating
- Tin
- Seri
- Flex Stack, HTST
- Max Current Rating
- 3A
- JESD-609 Kodu
- e4
- Radyasyon Dayanımı
- No
- Contact Shape
- Square
- Connector Type
- Header
- Current Rating Amps
- 3.4A per Contact
- Yayın Yılı
- 2012
- Orientation
- Straight
- Kurşunsuz Kodu
- yes
- Fastening Type
- Push-Pull
- Overall Contact Length
- 0.480 12.19mm
- Mil Conformance
- NO
- Row Spacing Mating
- 0.100 (2.54mm)
- Number Of Positions Loaded
- All
- Terminal
- Solder
- Çalışma Sıcaklığı
- -55°C~125°C
- Sıra Sayısı
- 2
- Din Conformance
- NO
- Filter Feature
- NO
- Pozisyon Sayısı
- 10
- Contact Lengthmating
- 0.250 6.35mm
- Material Flammability Rating
- UL94 V-0
- Insulation Materials
- Liquid Crystal Polymer (LCP)
- Contact Type
- Male Pin
- Depth
- 9.27mm
