Volume pricing
- 1+ pcs$6.92
- 10+ pcs$6.53
- 100+ pcs$6.16
- 500+ pcs$5.81
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

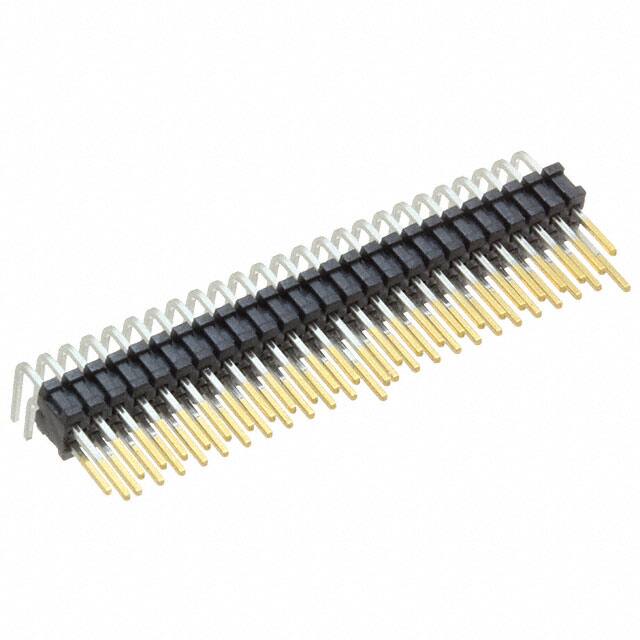

Specifications
- JESD-609 Kodu
- e3
- Contact Type
- Male Pin
- Number Of Positions Loaded
- All
- Montaj Tipi
- Through Hole, Right Angle
- Option
- GENERAL PURPOSE
- Insulation Height
- 0.135 3.43mm
- Filter Feature
- NO
- Sıra Sayısı
- 2
- Fastening Type
- Push-Pull
- Contact Shape
- Square
- Min. Çalışma Sıcaklığı
- -55°C
- Pitch Mating
- 0.050 1.27mm
- Parça Durumu
- Active
- Mil Conformance
- NO
- Housing Color
- Black
- Terminal
- Solder
- Radyasyon Dayanımı
- No
- Housing Material
- Polymer
- Row Spacing Mating
- 0.050 (1.27mm)
- Connector Type
- Header
- Contact Materials
- Phosphor Bronze
- Depth
- 10.05mm
- Pozisyon Sayısı
- 50
- Orientation
- Right Angle
- RoHS Durumu
- ROHS3 Compliant
- Din Conformance
- NO
- Montaj
- Through Hole
- Yayın Yılı
- 2008
- Contact Finish Mating
- Gold
- Gender
- Male
- Iec Conformance
- NO
- Style
- Board to Board
- Shrouding
- Unshrouded
- Contact Finish Thickness Mating
- 10.0μin 0.25μm
- Seri
- HPT
- Fabrika Tedarik Süresi
- 3 Weeks
- Max Current Rating
- 1.75A
- Contact Length Post
- 0.090 2.29mm
- Ambalaj
- Tube
- Maks. Çalışma Sıcaklığı
- 125°C
