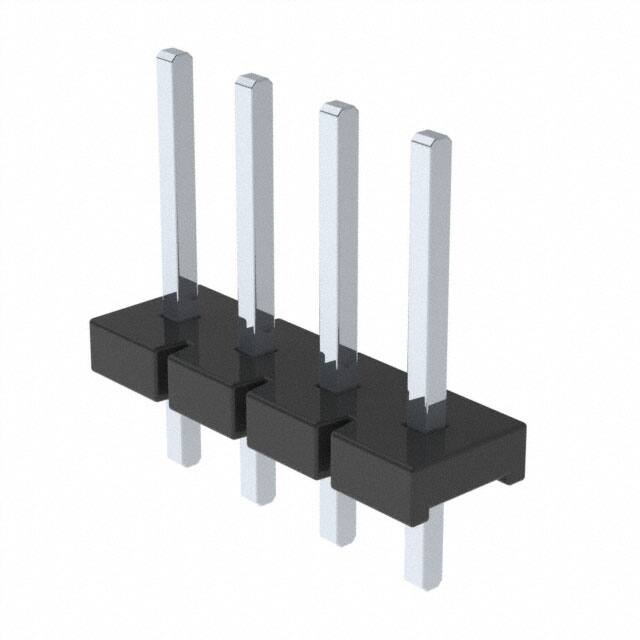

HPM-04-01-T-S

Specifications

Overall Contact Length

0.750 19.05mm

Kurşunsuz Kodu

yes

JESD-609 Kodu

e3

Insulation Color

Black

Contact Finish Mating

Tin

Terminal Adımı

5.08mm

Contact Length Post

0.180 4.57mm

Style

Board to Board

Contact Shape

Square

Iec Conformance

NO

Seri

HPM

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reach Svhc

No SVHC

Mil Conformance

NO

Connector Type

Header

Sıra Sayısı

1

Housing Material

Polyester

Montaj Tipi

Through Hole

Ambalaj

Bulk

Contact Lengthmating

0.470 11.94mm

Fabrika Tedarik Süresi

3 Weeks

Pitch Mating

0.200 5.08mm

Din Conformance

NO

Orientation

Straight

Shrouding

Unshrouded

Parça Durumu

Active

Depth

6.35mm

Fastening Type

Push-Pull

Insulation Height

0.100 2.54mm

Insulation Materials

Polyester, Glass Filled

Pozisyon Sayısı

4

Yayın Yılı

2011

Nominal Gerilim

850VAC 1200VDC

Option

GENERAL PURPOSE

RoHS Durumu

ROHS3 Compliant

Number Of Positions Loaded

All

Çalışma Sıcaklığı

-55°C~105°C

Terminal

Solder

Filter Feature

NO

Contact Materials

Copper Alloy
