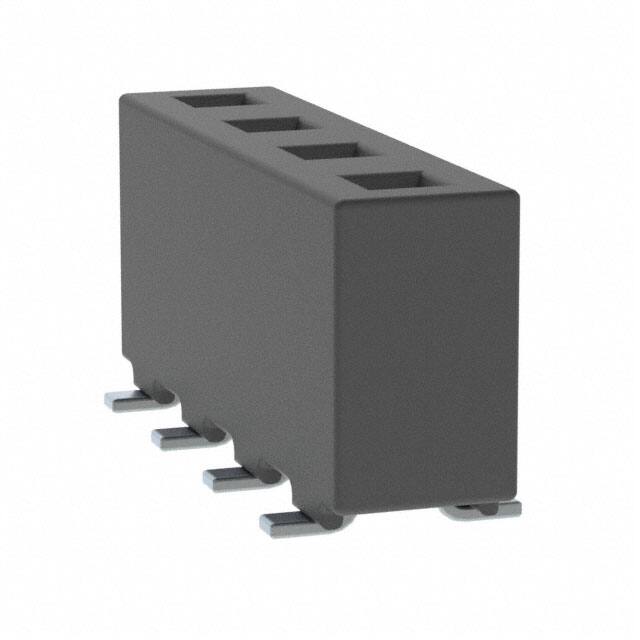

HPF-04-02-T-S

Specifications

Yayın Yılı

2014

Pozisyon Sayısı

4

Number Of Positions Loaded

All

RoHS Durumu

ROHS3 Compliant

Option

GENERAL PURPOSE

Fastening Type

Push-Pull

Depth

5.08mm

Total Number Of Contacts

4

Insulation Materials

Liquid Crystal Polymer (LCP)

Insulation Height

0.351 8.92mm

Radyasyon Dayanımı

No

Contact Materials

Beryllium Copper

Uzunluk

20.32mm

Contact Type

Female Socket

Mixed Contacts

NO

Filter Feature

NO

Terminal

Solder

Iec Conformance

NO

Contact Shape

Square

Style

Board to Board

Nem Hassasiyeti (MSL)

1 (Unlimited)

Seri

HPF

Empty Shell

NO

JESD-609 Kodu

e3

Kurşunsuz Kodu

yes

Additional Feature

POWER EYE CONTACT

Contact Finish Mating

Tin

Insulation Color

Black

Din Conformance

NO

Pitch Mating

0.200 5.08mm

Parça Durumu

Active

Orientation

Straight

Housing Material

Polymer

Sıra Sayısı

1

Connector Type

Receptacle

Mil Conformance

NO

Reach Svhc

No SVHC

Fabrika Tedarik Süresi

2 Weeks

Ambalaj

Tube

Montaj Tipi

Surface Mount
