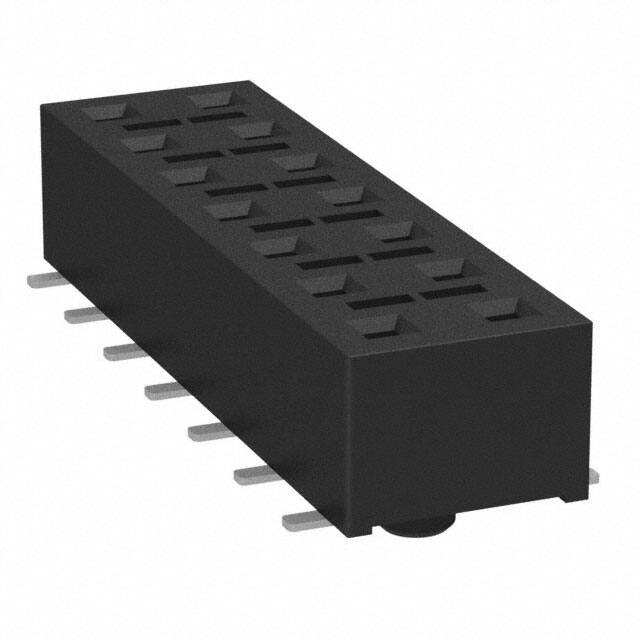

HLE-107-02-S-DV-BE-A

Specifications

Sıra Sayısı

2

Pitch Mating

0.100 2.54mm

Parça Durumu

Active

Max Current Rating

2.5A

Contact Finish Mating

Gold

Din Conformance

NO

Number Of Positions Loaded

All

Connector Type

Receptacle, Bottom Entry

Montaj Tipi

Surface Mount

Fastening Type

Push-Pull

Uzunluk

17.78mm

JESD-609 Kodu

e3

Insulation Materials

Liquid Crystal Polymer (LCP)

Özellikler

Board Guide

Current Rating Amps

4.1A per Contact

Mixed Contacts

NO

Pozisyon Sayısı

14

Contact Finish Post

Tin

Terminal

Solder

Contact Finish Thickness Mating

30.0μin 0.76μm

Çalışma Sıcaklığı

-55°C~125°C

Max Voltage Rating Ac

400V

Filter Feature

NO

Total Number Of Contacts

14

Housing Material

Polymer

Option

GENERAL PURPOSE

Row Spacing Mating

0.100 (2.54mm)

Yayın Yılı

2015

Nominal Gerilim

400VAC

Kurşunsuz Kodu

yes

Ambalaj

Tube

Seri

HLE

Mil Conformance

NO

Depth

5.08mm

Contact Type

Female Socket

Radyasyon Dayanımı

No

Gender

Female

Contact Materials

Beryllium Copper

Style

Board to Board

RoHS Durumu

ROHS3 Compliant
