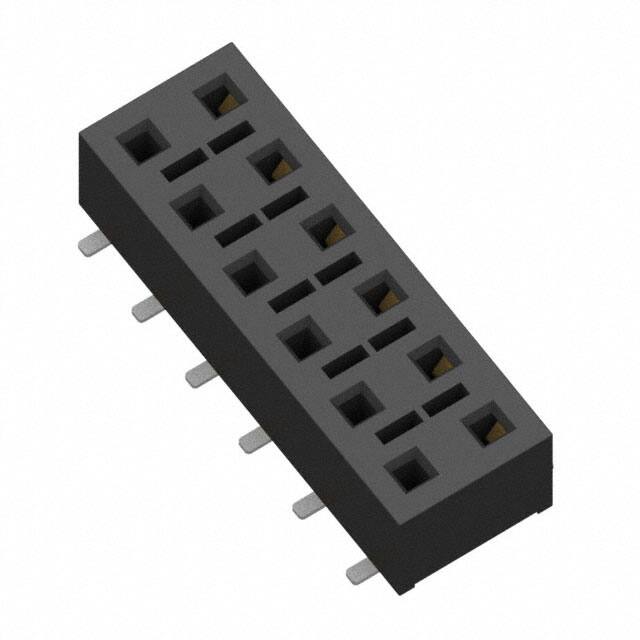

HLE-106-02-L-DV-K-TR

Specifications

Seri

HLE

Montaj

Surface Mount

Body Depth

0.144 inch

Contact Type

Female Socket

Contact Shape

Square

Insulation Height

0.144 3.66mm

Row Spacing Mating

0.100 (2.54mm)

Plating Thickness

10μin

Total Number Of Contacts

12

Kurşunsuz Kodu

yes

Current Rating Amps

4.1A per Contact

Insulation Materials

Liquid Crystal Polymer (LCP)

JESD-609 Kodu

e3

Mixed Contacts

NO

Pcb Contact Pattern

RECTANGULAR

Pitch Mating

0.100 2.54mm

Parça Durumu

Active

Connector Type

Receptacle

Number Of Positions Loaded

All

Contact Finish Mating

Gold

Fastening Type

Push-Pull

Mil Conformance

NO

Ambalaj

Tape & Reel (TR)

RoHS Durumu

ROHS3 Compliant

Style

Board to Board

Contact Materials

Beryllium Copper

Radyasyon Dayanımı

No

Mating Contact Pitch

.100 inch

Number Of Pcb Rows

2

Insulation Color

Black

Iec Conformance

NO

Option

GENERAL PURPOSE

Filter Feature

NO

Yayın Yılı

2013

Nominal Gerilim

400VAC

Özellikler

Pick and Place

Contact Finish Post

Tin

Pozisyon Sayısı

12

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal

Solder
