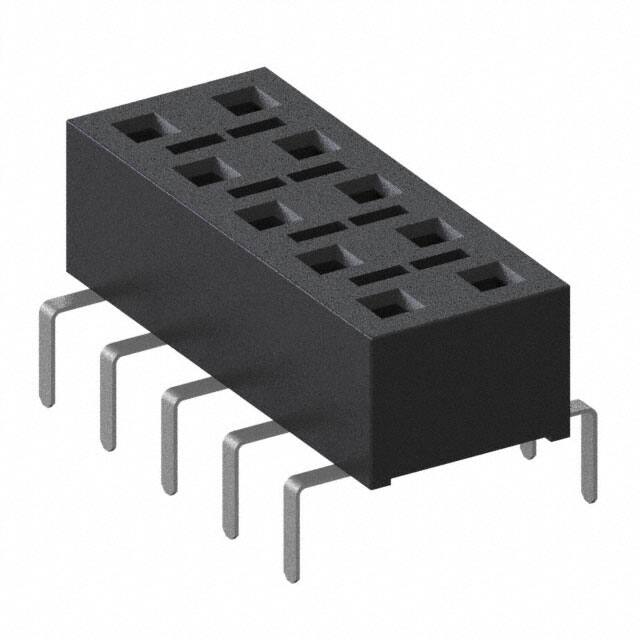

HLE-105-02-F-DV-PE-BE

Specifications

Nem Hassasiyeti (MSL)

Not Applicable

Mixed Contacts

NO

Pozisyon Sayısı

10

Contact Finish Post

Tin

JESD-609 Kodu

e3

Insulation Materials

Liquid Crystal Polymer (LCP)

Current Rating Amps

4.1A per Contact

Çalışma Sıcaklığı

-55°C~125°C

Contact Finish Thickness Mating

3.00μin 0.076μm

Terminal

Solder

Parça Durumu

Active

Sıra Sayısı

2

Pitch Mating

0.100 2.54mm

Fastening Type

Push-Pull

Number Of Positions Loaded

All

Din Conformance

NO

Contact Finish Mating

Gold

Connector Type

Receptacle, Bottom Entry, Pass Through

Fabrika Tedarik Süresi

3 Weeks

Montaj Tipi

Through Hole

Contact Type

Female Socket

Gender

Female

Radyasyon Dayanımı

No

Contact Length Post

0.090 2.29mm

Contact Materials

Beryllium Copper

RoHS Durumu

ROHS3 Compliant

Montaj

Through Hole

Style

Board to Board

Ambalaj

Tube

Seri

HLE

Mil Conformance

NO

Insulation Height

0.138 3.50mm

Iec Conformance

NO

Insulation Color

Black

Contact Shape

Square

Filter Feature

NO

Option

GENERAL PURPOSE

Row Spacing Mating

0.100 (2.54mm)

Nominal Gerilim

400VAC

Kurşunsuz Kodu

yes
