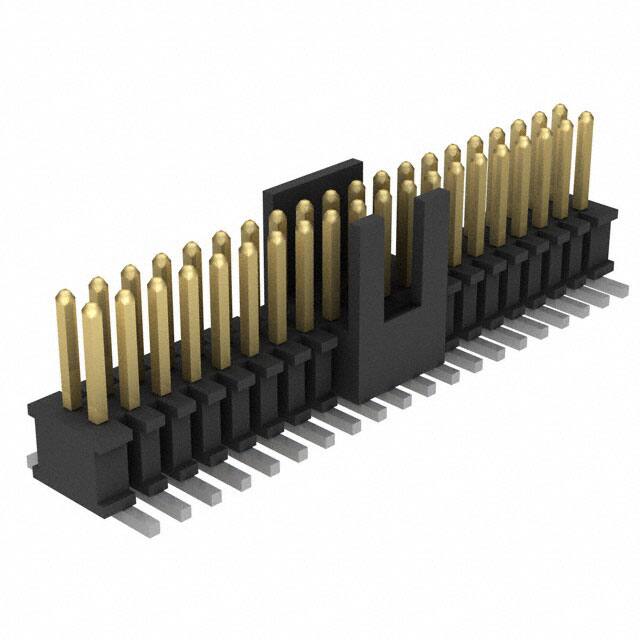

FTSH-120-01-F-DV-K

Specifications

ECCN Kodu

EAR99

Nem Hassasiyeti (MSL)

1 (Unlimited)

Housing Color

Black

Reference Standard

UL

Contact Lengthmating

0.120 3.05mm

Uzunluk

25.4mm

Mixed Contacts

NO

Insulation Height

0.099 2.51mm

Current Rating Amps

3.4A per Contact

Housing Material

Polymer

Contact Materials

Phosphor Bronze

JESD-609 Kodu

e3

Çalışma Sıcaklığı

-55°C~125°C

Shrouding

Unshrouded

Depth

5.84mm

Number Of Positions Loaded

All

Fabrika Tedarik Süresi

3 Weeks

Body Breadth

0.135 inch

Mil Conformance

NO

Reliability

COMMERCIAL

Din Conformance

NO

Iec Conformance

NO

Pitch Mating

0.050 1.27mm

Kurşunsuz Kodu

yes

Row Spacing Mating

0.050 (1.27mm)

Yayın Yılı

2014

Fastening Type

Push-Pull

Pcb Contact Pattern

RECTANGULAR

Style

Board to Board or Cable

Total Number Of Contacts

40

Additional Feature

KEYING OPTION

Pcb Contact Row Spacing

4.064 mm

Material Flammability Rating

UL94 V-0

Gender

Male

Option

GENERAL PURPOSE

Plating Thickness

3μin

Radyasyon Dayanımı

No

Contact Finish Mating

Gold

Parça Durumu

Active

RoHS Durumu

ROHS3 Compliant
