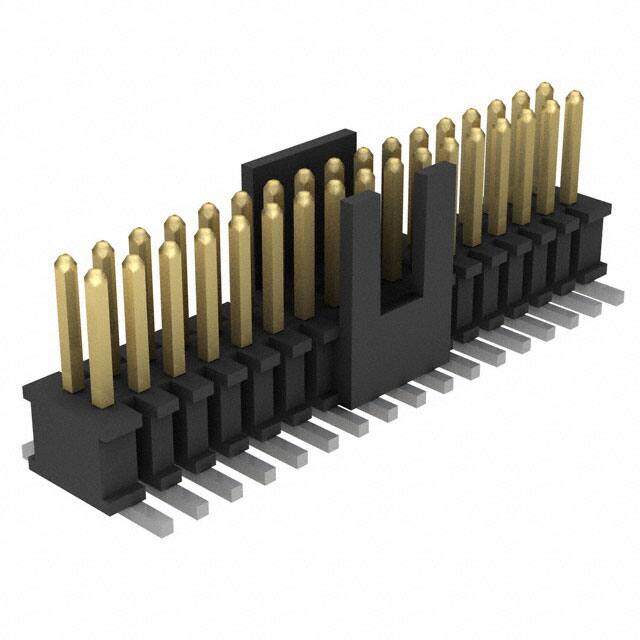

FTSH-117-01-F-DV-K

Specifications

Mixed Contacts

NO

Insulation Height

0.099 2.51mm

ECCN Kodu

EAR99

Housing Color

Black

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reference Standard

UL

Contact Lengthmating

0.120 3.05mm

Uzunluk

21.59mm

Depth

3.43mm

Number Of Positions Loaded

All

Shrouding

Unshrouded

Body Breadth

0.135 inch

Fabrika Tedarik Süresi

3 Weeks

Mil Conformance

NO

Current Rating Amps

3.4A per Contact

Housing Material

Polymer

Contact Materials

Phosphor Bronze

JESD-609 Kodu

e3

Çalışma Sıcaklığı

-55°C~125°C

Pitch Mating

0.050 1.27mm

Yayın Yılı

2011

Row Spacing Mating

0.050 (1.27mm)

Kurşunsuz Kodu

yes

Fastening Type

Push-Pull

Reliability

COMMERCIAL

Din Conformance

NO

Iec Conformance

NO

Pcb Contact Row Spacing

4.064 mm

Material Flammability Rating

UL94 V-0

Option

GENERAL PURPOSE

Pcb Contact Pattern

RECTANGULAR

Total Number Of Contacts

34

Additional Feature

KEYING OPTION

Style

Board to Board or Cable

Contact Finish Mating

Gold

RoHS Durumu

ROHS3 Compliant

Kurşunsuz

Lead Free

Parça Durumu

Active

Plating Thickness

3μin

Radyasyon Dayanımı

No
