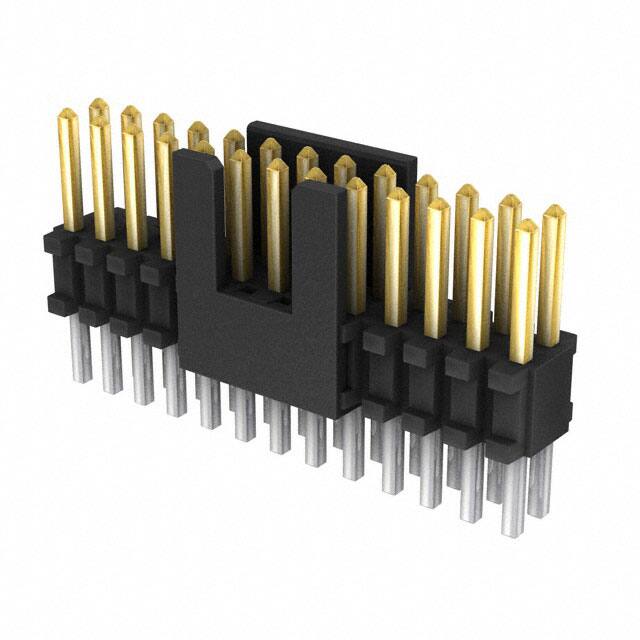

FTSH-113-01-L-D-K

Specifications

Reliability

COMMERCIAL

Din Conformance

NO

Iec Conformance

NO

Yayın Yılı

2013

Kurşunsuz Kodu

yes

Row Spacing Mating

0.050 (1.27mm)

Pitch Mating

0.050 1.27mm

Fastening Type

Push-Pull

Contact Length Post

0.090 2.29mm

Pcb Contact Pattern

RECTANGULAR

Additional Feature

POLARIZED, SHROUDED

Style

Board to Board or Cable

Gender

Male

Option

GENERAL PURPOSE

Material Flammability Rating

UL94 V-0

Housing Color

Black

Nem Hassasiyeti (MSL)

1 (Unlimited)

Overall Contact Length

0.309 7.86mm

Contact Lengthmating

0.120 3.05mm

Uzunluk

16.51mm

Reference Standard

UL

Insulation Height

0.099 2.51mm

Mixed Contacts

NO

Housing Material

Polymer

Contact Materials

Phosphor Bronze

JESD-609 Kodu

e3

Current Rating Amps

3.4A per Contact

Çalışma Sıcaklığı

-55°C~125°C

Number Of Positions Loaded

All

Depth

3.43mm

Shrouding

Unshrouded

Mil Conformance

NO

Body Breadth

0.135 inch

Fabrika Tedarik Süresi

3 Weeks

Pozisyon Sayısı

26

Insulation Materials

Liquid Crystal Polymer (LCP)

Sıra Sayısı

2

Orientation

Straight

Özellikler

Keying Shroud

Number Of Conductors

ONE
