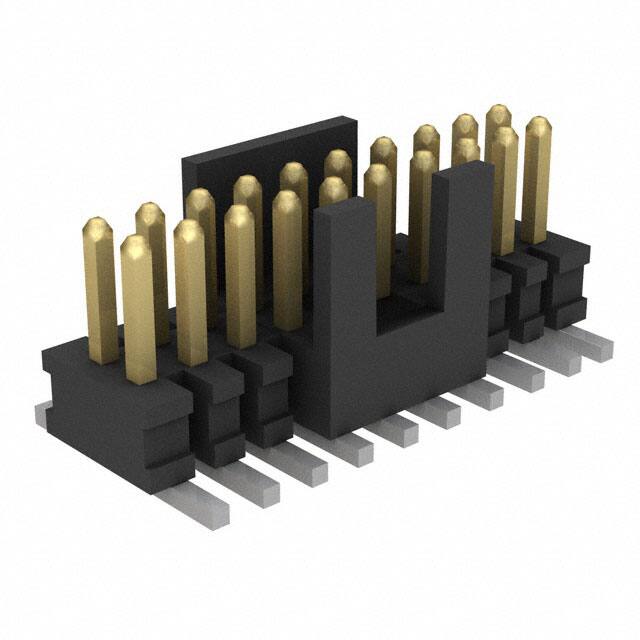

FTSH-110-01-F-DV-K-P-TR

Specifications

Material Flammability Rating

UL94 V-0

Pcb Contact Row Spacing

4.064 mm

Option

GENERAL PURPOSE

Gender

Male

Pcb Contact Pattern

RECTANGULAR

Insulation Color

Black

Total Number Of Contacts

20

Additional Feature

PICK & PLACE PAD

Style

Board to Board or Cable

Pitch Mating

0.050 1.27mm

Yayın Yılı

2006

Row Spacing Mating

0.050 (1.27mm)

Kurşunsuz Kodu

yes

Fastening Type

Push-Pull

Din Conformance

NO

Reliability

COMMERCIAL

Iec Conformance

NO

Depth

5.84mm

Number Of Positions Loaded

All

Shrouding

Unshrouded

Body Breadth

0.135 inch

Fabrika Tedarik Süresi

1 Weeks

Mil Conformance

NO

Current Rating Amps

3.4A per Contact

Housing Material

Polymer

Contact Materials

Phosphor Bronze

JESD-609 Kodu

e3

Çalışma Sıcaklığı

-55°C~125°C

Mixed Contacts

NO

Insulation Height

0.099 2.51mm

ECCN Kodu

EAR99

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reference Standard

UL

Uzunluk

12.7mm

Contact Lengthmating

0.120 3.05mm

Filter Feature

NO

Contact Shape

Square

Özellikler

Keying Shroud, Pick and Place

Orientation

Straight

Contact Type

Male Pin
