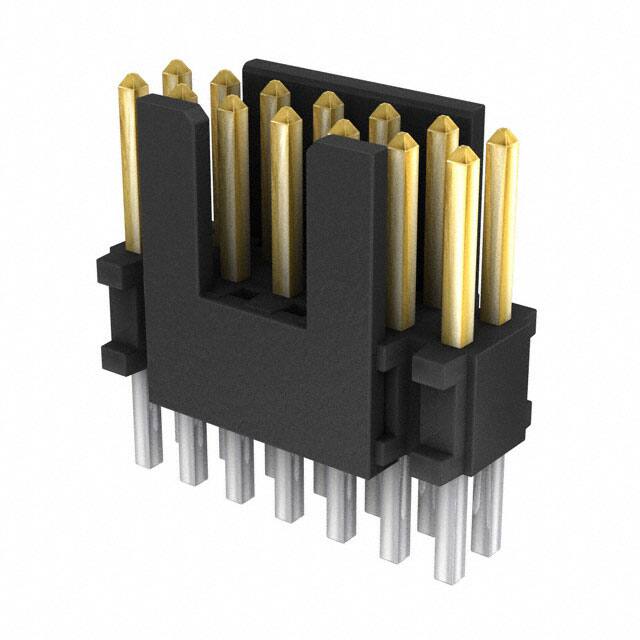

FTSH-107-01-L-D-K

Specifications

Reliability

COMMERCIAL

Din Conformance

NO

Iec Conformance

NO

Pitch Mating

0.050 1.27mm

Row Spacing Mating

0.050 (1.27mm)

Length Termination

0.09 inch

Fastening Type

Push-Pull

Contact Length Post

0.090 2.29mm

Pcb Contact Pattern

RECTANGULAR

Insulation Color

Black

Additional Feature

POLARIZED

Style

Board to Board or Cable

Body Length Or Diameter

0.347 inch

Material Flammability Rating

UL94 V-0

Ul Flammability Code

94V-0

Option

GENERAL PURPOSE

Gender

Male

ECCN Kodu

EAR99

Overall Contact Length

0.309 7.86mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reference Standard

UL

Contact Lengthmating

0.120 3.05mm

Mixed Contacts

NO

Insulation Height

0.099 2.51mm

Current Rating Amps

3.4A per Contact

Contact Materials

Phosphor Bronze

JESD-609 Kodu

e3

Çalışma Sıcaklığı

-55°C~125°C

Number Of Positions Loaded

All

Shrouding

Unshrouded

Body Breadth

0.135 inch

Fabrika Tedarik Süresi

3 Weeks

Mil Conformance

NO

Sıra Sayısı

2

Pozisyon Sayısı

14

Insulation Materials

Liquid Crystal Polymer (LCP)

Özellikler

Keying Shroud

Contact Type

Male Pin

Number Of Conductors

ONE

Contact Shape

Square
