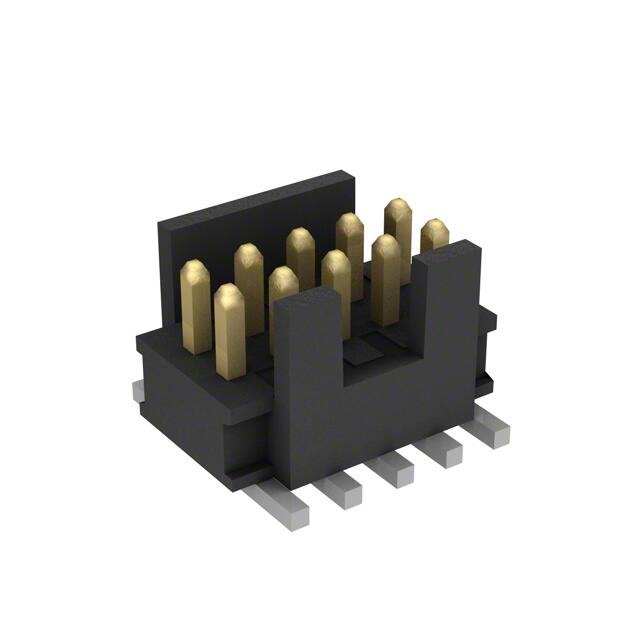

FTSH-105-01-L-DV-K

Specifications

Depth

3.43mm

Max Current Rating

1.75A

Option

GENERAL PURPOSE

RoHS Durumu

ROHS3 Compliant

Style

Board to Board or Cable

Current Rating Amps

3.4A per Contact

Contact Lengthmating

0.120 3.05mm

Kurşunsuz Kodu

yes

Housing Color

Black

Din Conformance

NO

Shrouding

Unshrouded

HTS Kodu

8536.69.40.40

Additional Feature

ALIGNMENT PIN

Contact Materials

Phosphor Bronze

Terminal

Solder

Gender

Male

Housing Material

Polymer

Pcb Contact Pattern

RECTANGULAR

Contact Type

Male Pin

Contact Finish Post

Tin

Contact Finish Mating

Gold

Contact Shape

Square

Row Spacing Mating

0.050 (1.27mm)

Uzunluk

6.35mm

Reliability

COMMERCIAL

Yayın Yılı

2012

Pozisyon Sayısı

10

Sıra Sayısı

2

Radyasyon Dayanımı

No

Material Flammability Rating

UL94 V-0

Reference Standard

UL

Parça Durumu

Active

Seri

FTSH

Mixed Contacts

NO

Kurşunsuz

Lead Free

Insulation Materials

Liquid Crystal Polymer (LCP)

Number Of Positions Loaded

All

Montaj

Surface Mount

Number Of Pcb Rows

2

Ambalaj

Tube
