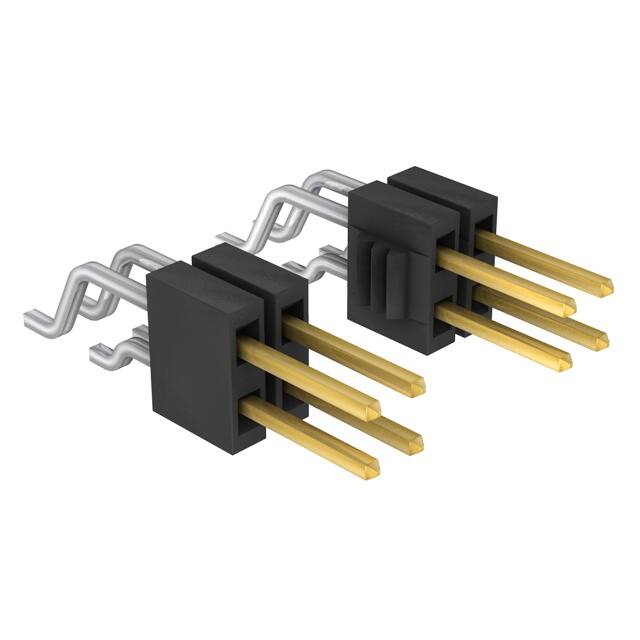

FTSH-105-01-L-DH

Specifications

Housing Color

Black

Kurşunsuz Kodu

yes

Contact Lengthmating

0.120 3.05mm

Current Rating Amps

3.4A per Contact

Style

Board to Board or Cable

Option

GENERAL PURPOSE

Max Current Rating

1.75A

RoHS Durumu

ROHS3 Compliant

Depth

10.89mm

Terminal

Solder

Genişlik

2.51mm

Contact Materials

Phosphor Bronze

Additional Feature

E.L.P.

Shrouding

Unshrouded

Din Conformance

NO

Pcb Contact Pattern

RECTANGULAR

Housing Material

Plastic

Gender

Male

Yayın Yılı

2005

Reliability

COMMERCIAL

Akım Değeri

1.75A

Contact Shape

Square

Uzunluk

6.35mm

Row Spacing Mating

0.050 (1.27mm)

Contact Finish Post

Tin

Contact Type

Male Pin

Contact Finish Mating

Gold

Seri

FTSH

Parça Durumu

Active

Kurşunsuz

Lead Free

Mixed Contacts

NO

Reference Standard

UL

Radyasyon Dayanımı

No

Material Flammability Rating

UL94 V-0

Pozisyon Sayısı

10

Sıra Sayısı

2

Ambalaj

Bulk

Montaj Tipi

Surface Mount, Right Angle

Number Of Pcb Rows

2

Insulation Materials

Liquid Crystal Polymer (LCP)
