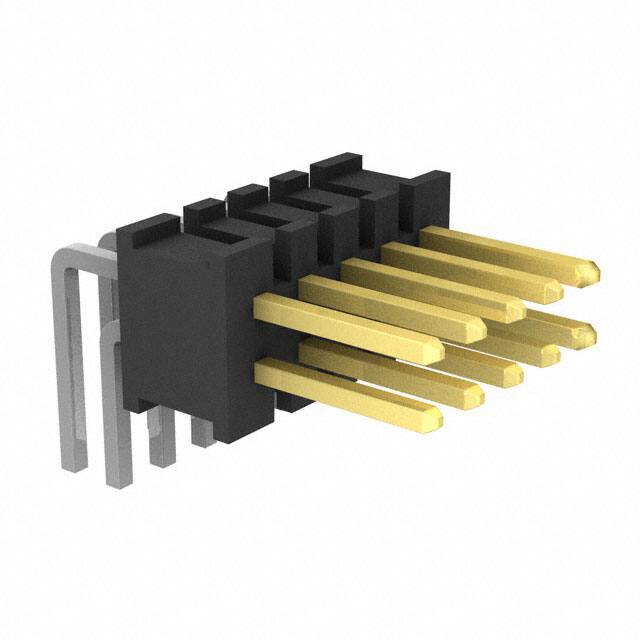

FTSH-105-01-FM-D-RA

Specifications

Parça Durumu

Active

Seri

FTSH

Mixed Contacts

NO

Radyasyon Dayanımı

No

Material Flammability Rating

UL94 V-0

Pozisyon Sayısı

10

Sıra Sayısı

2

Montaj Tipi

Through Hole, Right Angle

Ambalaj

Tube

Number Of Pcb Rows

2

Insulation Materials

Liquid Crystal Polymer (LCP)

Number Of Positions Loaded

All

Mating Contact Pitch

0.05 inch

Fabrika Tedarik Süresi

3 Weeks

Connector Type

Header, Cuttable

ECCN Kodu

EAR99

Number Of Conductors

ONE

Nem Hassasiyeti (MSL)

Not Applicable

Çalışma Sıcaklığı

-55°C~125°C

Contact Finish Thickness Mating

3.00μin 0.076μm

Mil Conformance

NO

Pitch Mating

0.050 1.27mm

Insulation Height

0.135 3.43mm

Body Breadth

0.135 inch

Filter Feature

NO

JESD-609 Kodu

e3

Iec Conformance

NO

Fastening Type

Push-Pull

Orientation

Right Angle

Contact Lengthmating

0.120 3.05mm

Current Rating Amps

3.4A per Contact

Style

Board to Board or Cable

Kurşunsuz Kodu

yes

Max Current Rating

1.75A

Option

GENERAL PURPOSE

RoHS Durumu

ROHS3 Compliant

Depth

8.1mm

Mounting Option1

LOCKING

Insulation Color

Black

Terminal

Solder
