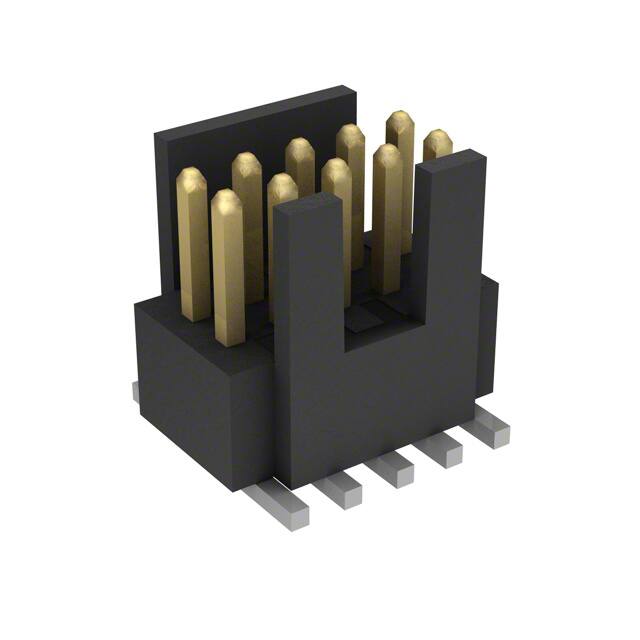

FTSH-105-01-F-DV-K

Specifications

Insulation Materials

Liquid Crystal Polymer (LCP)

Montaj

Surface Mount

Number Of Positions Loaded

All

Ambalaj

Tube

Montaj Tipi

Surface Mount

Number Of Pcb Rows

2

Radyasyon Dayanımı

No

Material Flammability Rating

UL94 V-0

Pozisyon Sayısı

10

Sıra Sayısı

2

Parça Durumu

Active

Seri

FTSH

Mixed Contacts

NO

Kurşunsuz

Lead Free

Reference Standard

UL

Pitch Mating

0.050 1.27mm

Filter Feature

NO

Body Breadth

0.135 inch

Insulation Height

0.099 2.51mm

Iec Conformance

NO

JESD-609 Kodu

e3

Özellikler

Keying Shroud

Fastening Type

Push-Pull

Pcb Contact Row Spacing

4.064 mm

Orientation

Straight

Total Number Of Contacts

10

Connector Type

Header, Cuttable

Number Of Conductors

ONE

ECCN Kodu

EAR99

Nem Hassasiyeti (MSL)

1 (Unlimited)

Çalışma Sıcaklığı

-55°C~125°C

Contact Finish Thickness Mating

3.00μin 0.076μm

Mil Conformance

NO

Fabrika Tedarik Süresi

3 Weeks

Yükseklik

3.3mm

Mating Contact Pitch

0.05 inch

Additional Feature

ROHS COMPLIANT

Din Conformance

NO

Shrouding

Unshrouded

HTS Kodu

8536.69.40.40
