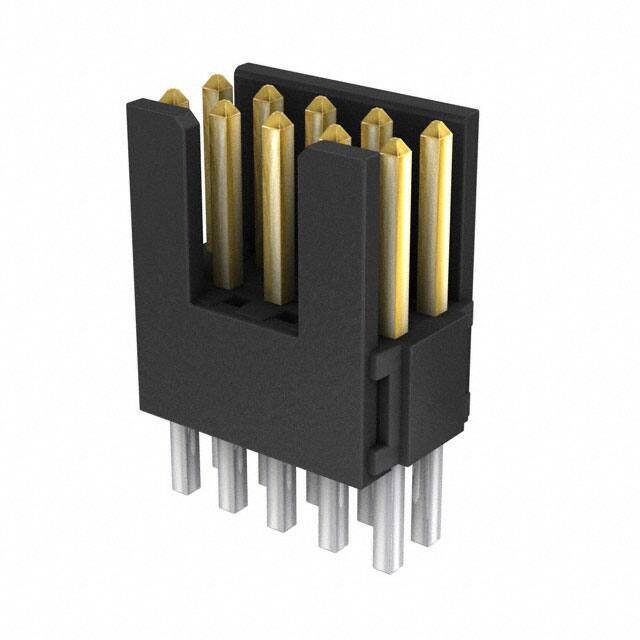

FTSH-105-01-F-D-K

Specifications

Radyasyon Dayanımı

No

Material Flammability Rating

UL94 V-0

Pozisyon Sayısı

10

Sıra Sayısı

2

Seri

FTSH

Overall Contact Length

0.309 7.86mm

Parça Durumu

Active

Mixed Contacts

NO

Reference Standard

UL

Insulation Materials

Liquid Crystal Polymer (LCP)

Ul Flammability Code

94V-0

Montaj

Through Hole

Number Of Positions Loaded

All

Ambalaj

Tube

Montaj Tipi

Through Hole

Number Of Pcb Rows

2

Fabrika Tedarik Süresi

4 Weeks

Mating Contact Pitch

0.05 inch

Filter Feature

NO

Body Breadth

0.135 inch

Insulation Height

0.099 2.51mm

Pitch Mating

0.050 1.27mm

Iec Conformance

NO

JESD-609 Kodu

e3

Orientation

Straight

Fastening Type

Push-Pull

Özellikler

Keying Shroud

Connector Type

Header, Cuttable

Number Of Conductors

ONE

ECCN Kodu

EAR99

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mil Conformance

NO

Çalışma Sıcaklığı

-55°C~125°C

Contact Finish Thickness Mating

3.00μin 0.076μm

Option

GENERAL PURPOSE

Max Current Rating

1.75A

RoHS Durumu

ROHS3 Compliant

Depth

3.43mm

Housing Color

Black

Contact Lengthmating

0.120 3.05mm
