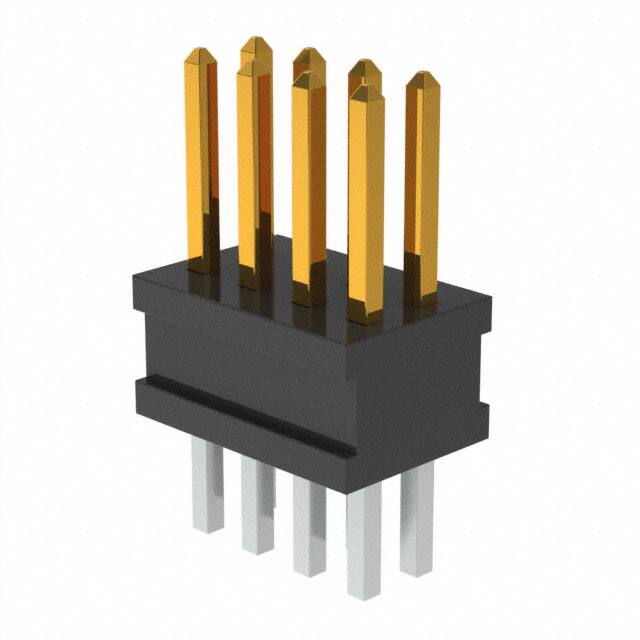

FTSH-104-04-L-D

Specifications

Connector Type

Header, Cuttable

Number Of Conductors

ONE

ECCN Kodu

EAR99

Nem Hassasiyeti (MSL)

1 (Unlimited)

Çalışma Sıcaklığı

-55°C~125°C

Contact Finish Thickness Mating

10.0μin 0.25μm

Mil Conformance

NO

Pitch Mating

0.050 1.27mm

Filter Feature

NO

Insulation Height

0.099 2.51mm

Body Breadth

0.135 inch

JESD-609 Kodu

e3

Iec Conformance

NO

Fastening Type

Push-Pull

Orientation

Straight

Mating Contact Pitch

0.05 inch

Reach Svhc

No SVHC

Fabrika Tedarik Süresi

3 Weeks

Ambalaj

Bulk

Montaj Tipi

Through Hole

Number Of Pcb Rows

2

Ul Flammability Code

94V-0

Insulation Materials

Liquid Crystal Polymer (LCP)

Number Of Positions Loaded

All

Overall Contact Length

0.339 8.60mm

Parça Durumu

Active

Seri

FTSH

Mixed Contacts

NO

Reference Standard

UL

Radyasyon Dayanımı

No

Material Flammability Rating

UL94 V-0

Pozisyon Sayısı

8

Sıra Sayısı

2

Yayın Yılı

2008

Plating Thickness

10μin

Reliability

COMMERCIAL

Contact Length Post

0.090 2.29mm

Contact Shape

Square

Row Spacing Mating

0.050 (1.27mm)

Uzunluk

5.08mm
